Neutralization Status Check

WARNING: This page is about a different variant/trim than selected.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization Mode".

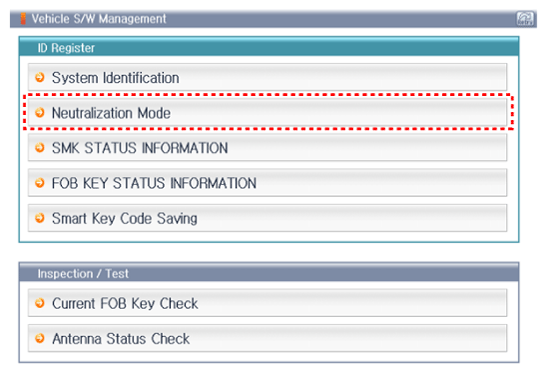

Fig 1: Scantool Display - Vehicle S/W Management
Courtesy of HYUNDAI MOTOR AMERICA

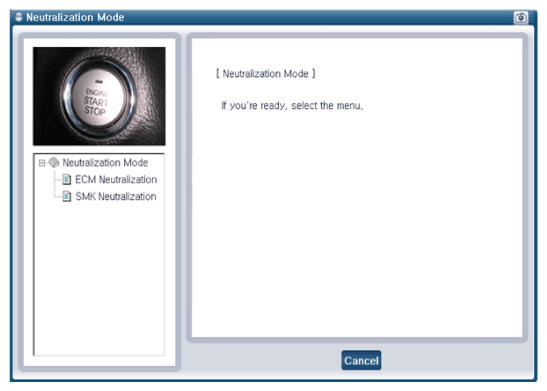

Fig 2: Scantool Display - Neutralization Mode
Courtesy of HYUNDAI MOTOR AMERICA

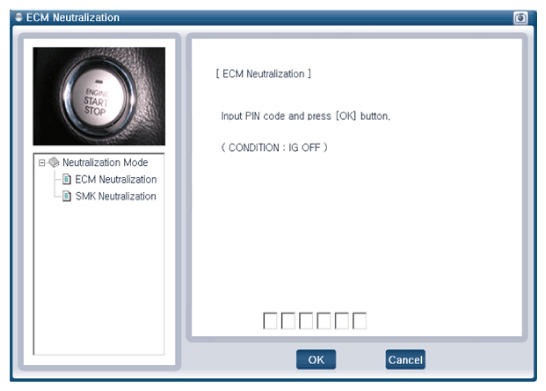

Fig 3: Scantool Display - ECM Neutralization
Courtesy of HYUNDAI MOTOR AMERICA

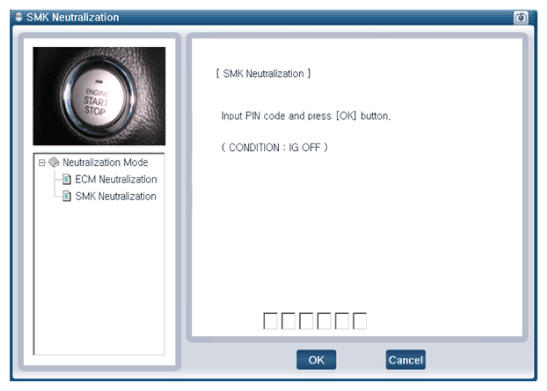

Fig 4: Scantool Display - SMK Neutralization
Courtesy of HYUNDAI MOTOR AMERICA
