Engine Oil Schematics

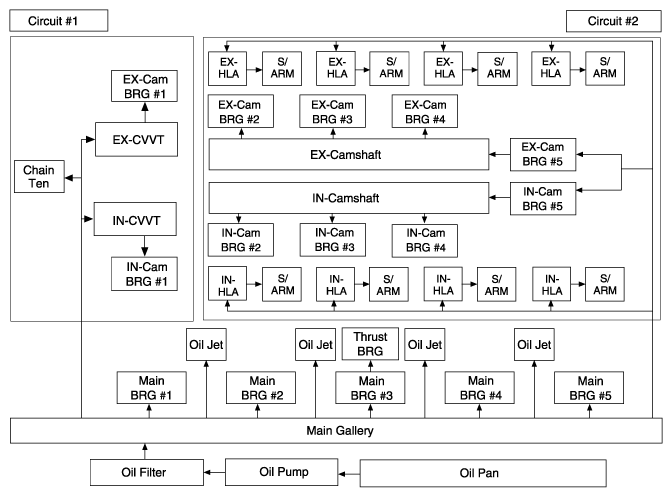

Fig 1: Engine Oil Schematics Flow

G12024661

Courtesy of HYUNDAI MOTOR AMERICA
