Home >> Hyundai >> 2017 >> Elantra Value Edition >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System - 2.0L >> Components And Components Location >> Components

Components And Components Location: Components

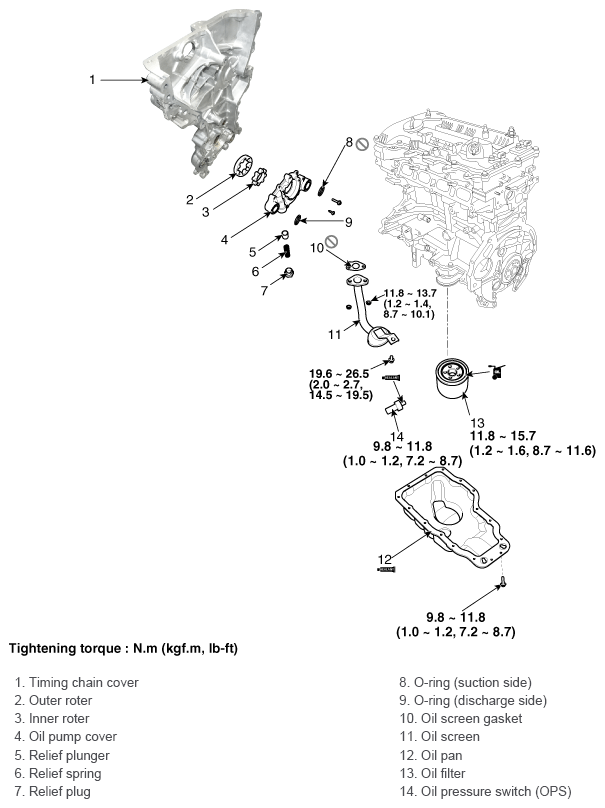

Fig 1: Lubrication System Components With Torque Specification

G12024660

Courtesy of HYUNDAI MOTOR AMERICA
