Engine Starting System - 2.0L: Troubleshooting

NOTE:
  • The battery must be in good condition and fully charged for this troubleshooting.

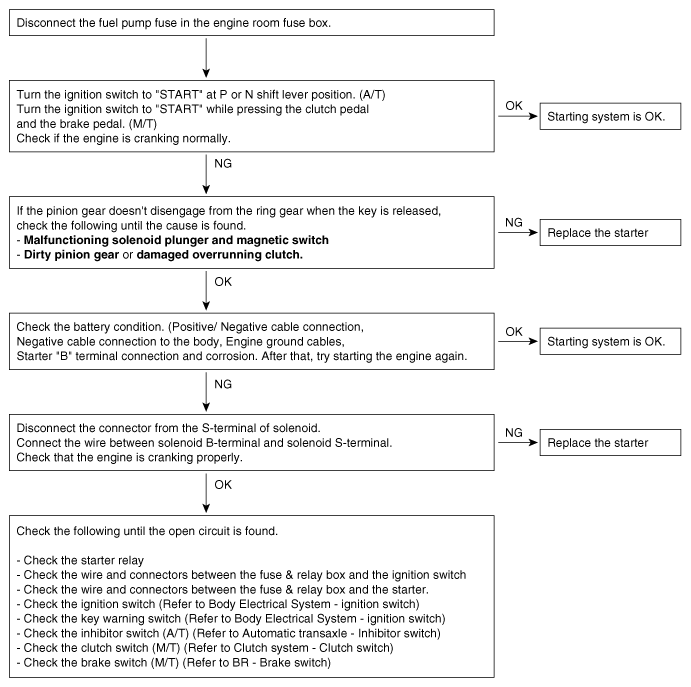

Fig 1: Starting System Troubleshooting Chart
G12024784Courtesy of HYUNDAI MOTOR AMERICA
