Components And Components Location: Components

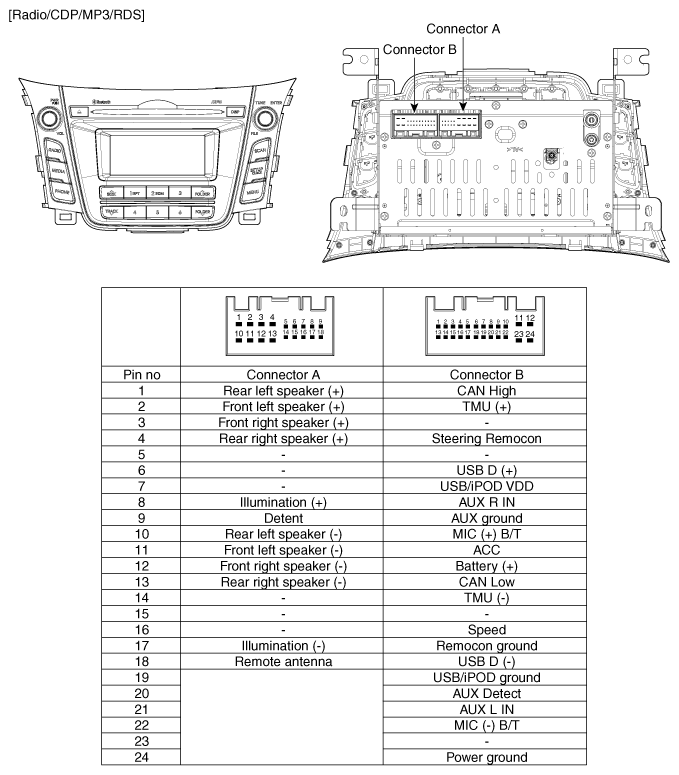

Fig 1: Audio Unit Connector Terminals Description Chart

G12076439

Courtesy of HYUNDAI MOTOR AMERICA
