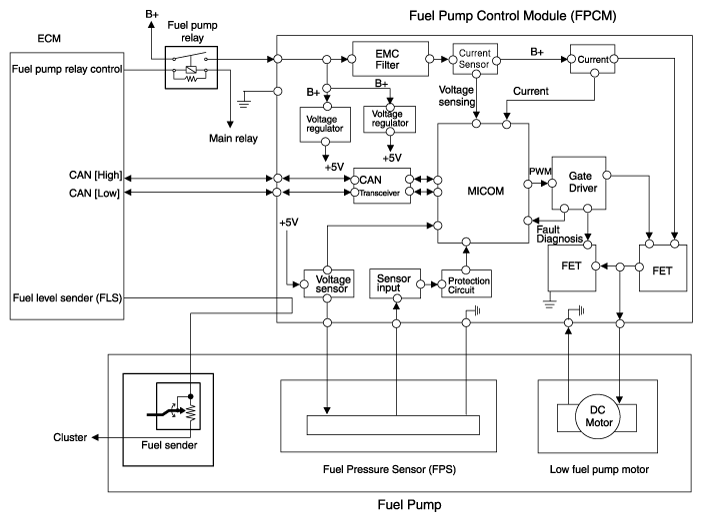

Home >> Hyundai >> 2017 >> Elantra Eco >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 1.4L >> Fuel Pump Control Module (FPCM) >> Schematic Diagrams >> Circuit Diagram
