Component And Components Location: Components

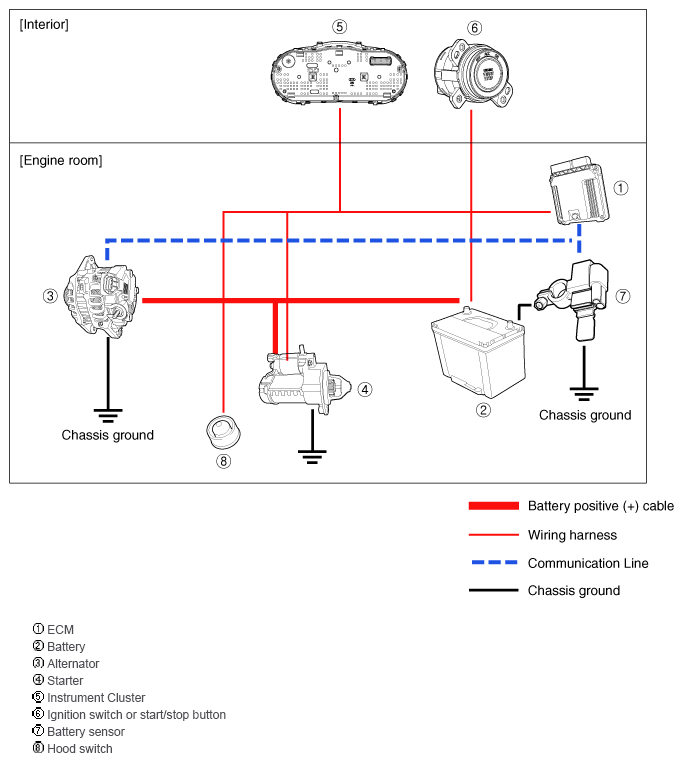

Fig 1: Charging System Component And Communication Diagram

G12020354

Courtesy of HYUNDAI MOTOR AMERICA
