Home >> Hyundai >> 2017 >> Elantra Eco >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System - 1.4L >> Alternator >> Component And Components Location >> Components

Component And Components Location: Components

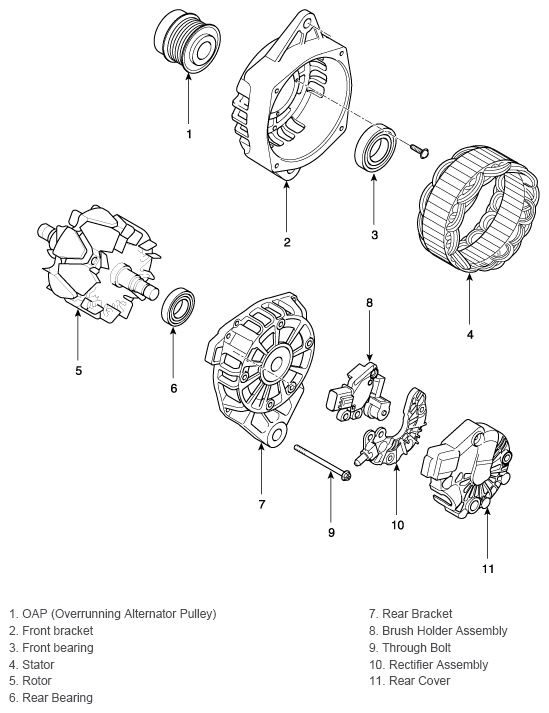

Fig 1: Alternator Components

G12020384

Courtesy of HYUNDAI MOTOR AMERICA
