Components And Components Location: Components

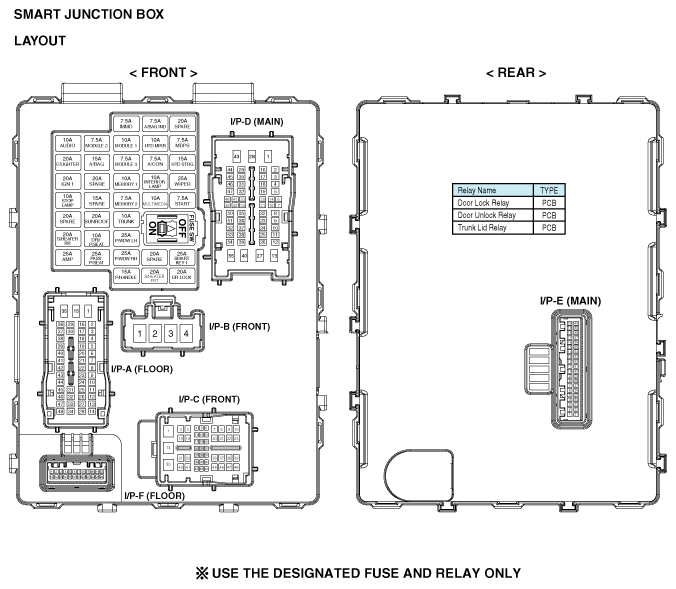

SMART JUNCTION BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Door Lock Relay (PCB) |
| Door Unlock Relay (PCB) |
| Trunk Lid Relay (PCB) |
SMART JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse Name | (A) | Circuit Protected | ||||||
|---|---|---|---|---|---|---|---|---|
| IMMO | 7.5A | Immobilizer Module, Smart Key Control Module | ||||||
| A/BAG IND | 7.5A | Instrument Cluster | ||||||
| AUDIO | 10A | AMP, MAP Lamp, Front Monitor, Smart Key Control Module, Telematics Unit, E/R Fuse & relay Box (Power Outlet Relay), A/V & Navigation Head Unit | ||||||
| MODULE 2 | 7.5A | ABS Control Module, ESC Module, Rear Seat Warmer LH/RH, Rear Power Window Switch LH/RH, Console Switch, A/C Control Module, Active Incar Sensor, Driver IMS Module, Rear Parking Assist Sensor LH/RH/LH (Center)/RH (Center) | ||||||
| MODULE 1 | 10A | Driver Power Seat Switch, Driver/Passenger Seat Warmer Module, Driver/Passenger Door Module, Stop Lamp Switch, Crash Pad Switch, Driver/Passenger CCS Control Module, Steering Tilt & Telescope Module, E/R Fuse & Relay Box (Stop Lamp Relay), Instrument Cluster, Multifunction Switch, Head Lamp Leveling Device Actuator LH/RH, Auto Head Lamp Leveling Device Module, Electro Chromic Mirror, ATM Lever Indicator, Tire Pressure Monitoring Module | ||||||
| HTD MIRR | 10A | Driver/Passenger Power Outside Mirror, A/C Control Module | ||||||
| MDPS | 7.5A | MDPS Unit | ||||||
| C/LIGHTER | 20A | Center Tray Outlet | ||||||
| A/BAG | 15A | SRS Control Module, Passenger Occupant Detection Sensor, A/C Control Module | ||||||
| MODULE 3 | 7.5A | Panorama Sunroof, Instrument Cluster, Rain Sensor, Smart Key Control Module, Rear Seat Warmer LH/RH | ||||||
| A/CON | 7.5A | A/C Control Module, E/R Fuse & Relay (Blower Relay), Cluster Ionizer, Driver/Passenger Seat Warmer Module, Driver/Passenger CCS Control Module | ||||||
| HTD STRG | 15A | Steering Wheel Heater | ||||||
| IGN 1 | 20A | E/R Fuse & Relay Box (ECU 5 10A, ECU 4 10A, IGN 1 15A) | ||||||
| MEMORY 1 | 10A | Driver Power Seat Switch, Data Link Connector, A/C Control Module, Driver/Passenger Door Module, Instrument Cluster, Tire Pressure Monitoring Module, Auto Light & Photo Sensor | ||||||
| INTERIOR LAMP | 10A | Cup Holder Lamp, Rear Door Lamp LH/RH, MAP lamp, Driver/Passenger Door Mood Lamp, Driver/Passenger Door Lamp, Driver/Passenger Foot Lamp, Driver/Passenger Door Scuff Lamp, Rear Door Mood Lamp LH/RH, Vanity Lamp Switch LJ/RH, Rear Door Scuff Lamp LH/RH, Trunk Room Lamp, Center Tray Lamp, Garnish Lamp LH/RH, Rear Personal Lamp Center/LH/RH | ||||||
| WIPER | 25A | Wiper Motor, E/R Fuse & Relay Box (Washer Relay, Wiper (Low) Relay, Wiper (High) Relay) | ||||||
| STOP LAMP | 10A | Immobilizer Module, Smart Key Control Module, Stop Lamp Switch, Start Stop Button Switch | ||||||
| MEMORY 2 | 7.5A | RF Receiver | ||||||
| MULTIMEDIA | 10A | Front Monitor, A/V & Navigation Head Unit, Telematics Unit | ||||||
| START | 7.5A | Transaxle Range Switch, PCM | ||||||
| SUNROOF | 20A | Panorama Sunroof | ||||||
| TRUNK | 10A | Trunk Lid Relay, Fuel Filler Door & Trunk Lid Switch | ||||||
| S/HEATER RR | 20A | Rear Seat Warmer LH/RH | ||||||
| DRV P/SEAT | 10A | - | ||||||
| P/WDW LH | 25A | Driver Safety Window Module, Rear Power Window Switch LH | ||||||
| AMP | 25A | AMP | ||||||
| PASS P/SEAT | 25A | Passenger Reclining Limit Switch, Passenger Seat Relay Box | ||||||
| P/WDW RH | 25A | Passenger Safety Window Module, Rear Power Window Switch RH | ||||||
| SMART KEY 1 | 25A | Smart Key Control Module | ||||||
| P/HANDLE | 15A | Sport Mode Switch, Steering Tilt & Telescopic Module | ||||||
| S/HEATER FRT | 20A | Driver/Passenger Seat Warmer Module, Driver/Passenger CCS Control Module | ||||||
| DR LOCK | 20A | Door Lock/Unlock Relay, ICM Relay Box (Two Turn Unlock Relay) | ||||||
| * USE THE DESIGNATED FUSE AND RELAY ONLY | ||||||||
