Components And Components Location: Components

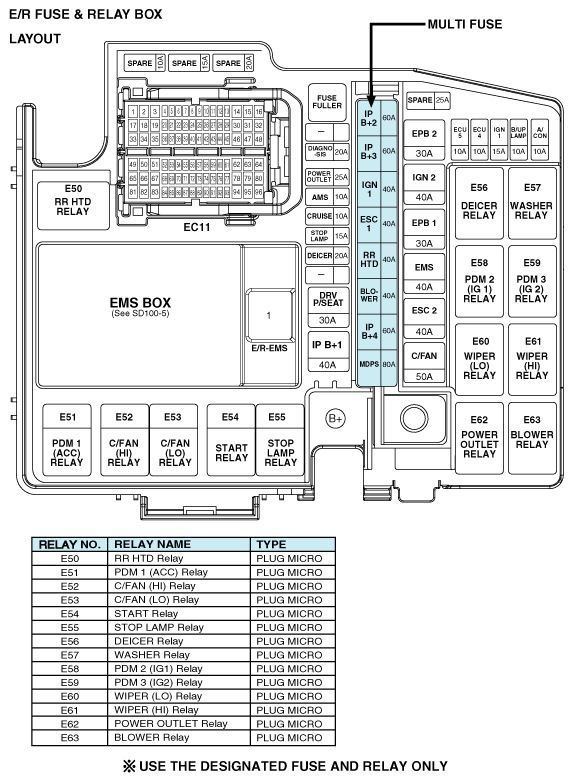

RELAY BOX (ENGINE COMPARTMENT) FUSE IDENTIFICATION LEGEND
| Fuse Name | (A) | Circuit Protected | |||||||
|---|---|---|---|---|---|---|---|---|---|
| MULTI FUSE | IP B+2 | 60A | Smart Junction Box (P/HANDLE 15A, SUNROOF 20A, DRV P/SEAT 10A, IPS 2, ARISU-LT 1) | ||||||
| IP B+3 | 60A | Smart Junction Box (P/WDW 25A, P/WDW RH 25A, S/HEATER FRT 10A, TRUNK 10A) | |||||||
| IGN 1 | 40A | W/O Smart Key - Ignition Switch, With Smart Key - PDM 1 (ACC) Relay, PDM 2 (IG1) Relay | |||||||
| ESC 1 | 40A | ESC Module, ABS Control Module | |||||||
| RR HTD | 40A | RR HTD Relay | |||||||
| BLOWER | 40A | Blower Relay | |||||||
| IP B+4 | 60A | Smart Junction Box (STOP LAMP 10A, S/HEATER RR 20A, IPS 4, ARISU-LT 2) | |||||||
| MDPS | 80A | MDPS Unit | |||||||
| FUSE | A/CON | 10A | A/C Control Module | ||||||
| B/UP LAMP | 10A | Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror, A/V & Navigation Head Unit | |||||||
| IGN 1 | 15A | Transaxle Range Switch | |||||||
| ECU 4 | 10A | PCM | |||||||
| ECU 5 | 10A | Multipurpose Check Connector | |||||||
| EPB 2 | 30A | - | |||||||
| IGN 2 | 40A | Start Relay, W/O Smart Key - Ignition Switch, With Smart Key - PDM 3 (IG2) Relay | |||||||
| EPB 1 | 30A | - | |||||||
| EMS | 40A | EMS Box (ECU 3 15A, ECU 1 30A, F/PUMP 20A, HORN 15A) | |||||||
| ESC 2 | 40A | ESC Module, ABS Control Module | |||||||
| C/FAN | 50A | C/Fan (HI) Relay, C/FAN (LO) Relay | |||||||
| DIAGNOSIS | 20A | Multipurpose Check Connector | |||||||
| POWER OUTLET | 25A | Power Outlet Relay | |||||||
| AMS | 10A | Battery Sensor | |||||||
| CRUISE | 10A | - | |||||||
| STOP LAMP | 15A | Stop Lamp Relay, Stop Signal Relay | |||||||
| DEICER | 20A | Deicer Relay | |||||||
| DRV P/SEAT | 30A | Driver Lumbar Support Limit Switch, Driver IMS Module, Driver Seat Relay Box, Driver Reclining Limit Switch | |||||||
| IP B+1 | 40A | Smart Junction Box (DR LOCK 20A, SMART KEY 1 25A, Leak Current Autocut Device (Leak Current Autocut Relay, Leak Current Autocut Switch, IPS 5)), E/R Fuse & Relay Box (DIAGNOSIS 20A) | |||||||
| * USE THE DESIGNATED FUSE AND RELAY ONLY | |||||||||

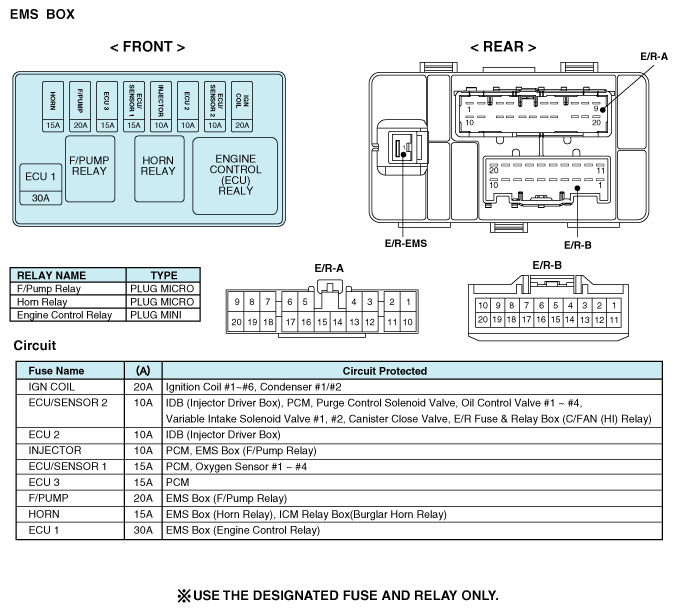

EMS BOX FUSE IDENTIFICATION LEGEND
| Fuse Name | (A) | Circuit Protected | ||||||
|---|---|---|---|---|---|---|---|---|
| IGN COIL | 20A | Ignition Coil #1 - #6, Condenser #1/#2 | ||||||
| ECU/SENSOR 2 | 10A | IDB (Injector Drive Box), PCM, Purge Control Solenoid Valve, Oil Control Valve #1 - #4, Variable Intake Solenoid Valve #1, #2, Canister Close Valve, E/R Fuse & Relay Box (C/FAN (HI) Relay) | ||||||
| ECU 2 | 10A | IDB (Injector Drive Box) | ||||||
| INJECTOR | 10A | PCM, EMS Box (Fuel/Pump Relay) | ||||||
| ECU/SENSOR 1 | 15A | PCM, Oxygen Sensor #1 - #4 | ||||||
| ECU 3 | 15A | PCM | ||||||
| FUEL/PUMP | 20A | EMS Box (Fuel/Pump Relay) | ||||||
| HORN | 15A | EMS Box (Horn Relay), ICM Relay Box (Burglar Horn Relay) | ||||||
| ECU 1 | 30A | EMS Box (Engine Control Relay) | ||||||
| * USE THE DESIGNATED FUSE AND RELAY ONLY | ||||||||
