Component Location

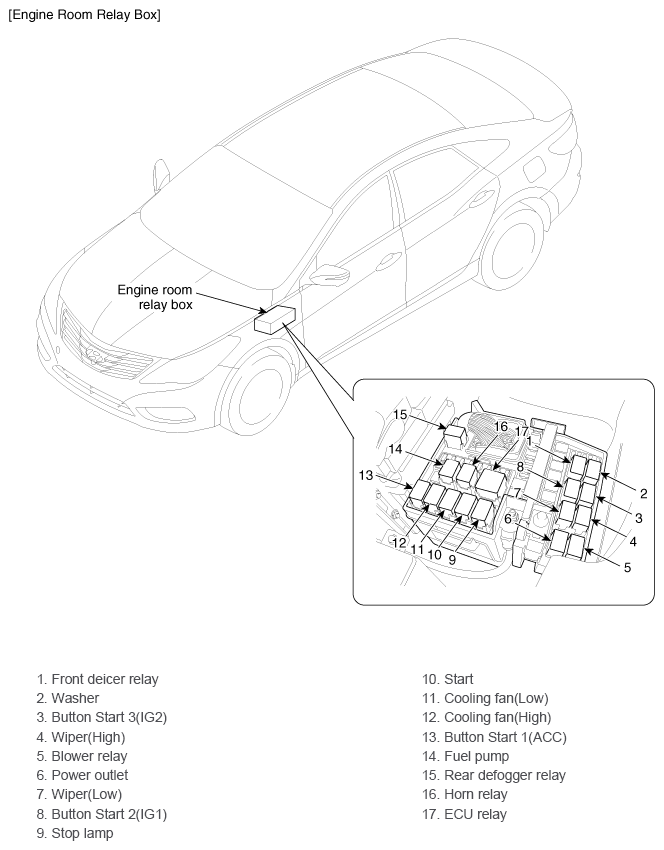

ENGINE ROOM RELAY BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Front Deicer Relay |
| Washer Relay |
| Button Start 3 IG2) Relay |
| Wiper (High) Relay |
| Blower Relay |
| Power Outlet Relay |
| Wiper (Low) Relay |
| Button start 2 (IG1) Relay |
| Stop Lamp Relay |
| Start Relay |
| Cooling Fan (Low) Relay |
| Cooling Fan (High) Relay |
| Button Start 1 (ACC) Relay |
| Fuel Pump Relay |
| Rear Defogger Relay |
| Horn Relay |
| ECU Relay |
