Components And Components Location: Components

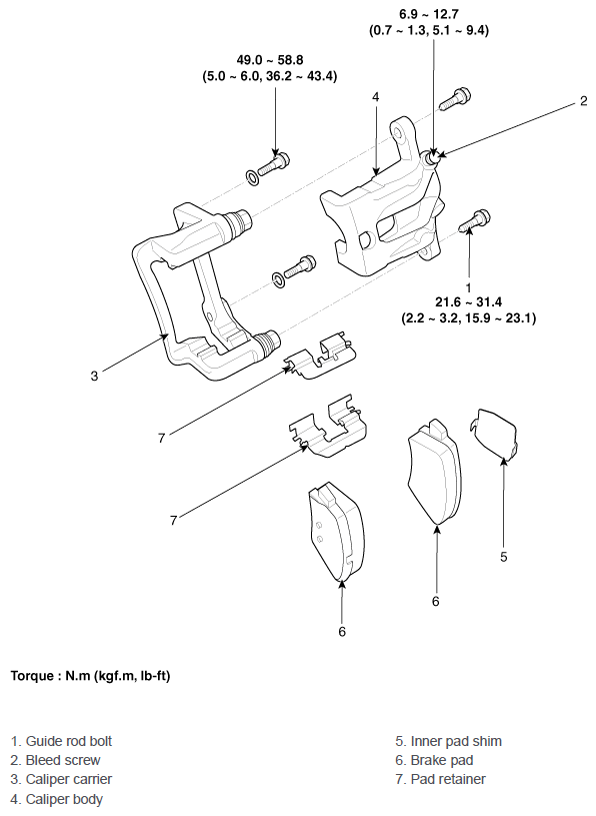

Fig 1: Rear Disc Brake Components With Torque Specification

G12089676

Courtesy of HYUNDAI MOTOR AMERICA
