Home >> Hyundai >> 2017 >> Azera Base >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brake System >> Front Disc Brake >> Components And Components Location >> Components

Components And Components Location: Components

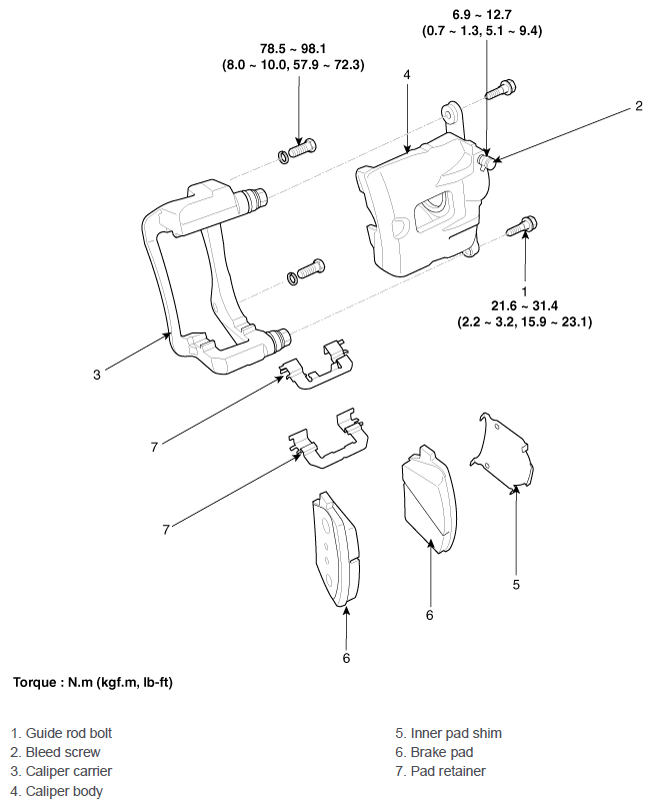

Fig 1: Front Disc Brake Components With Torque Specification

G12089666

Courtesy of HYUNDAI MOTOR AMERICA
