Components And Components Location: Components

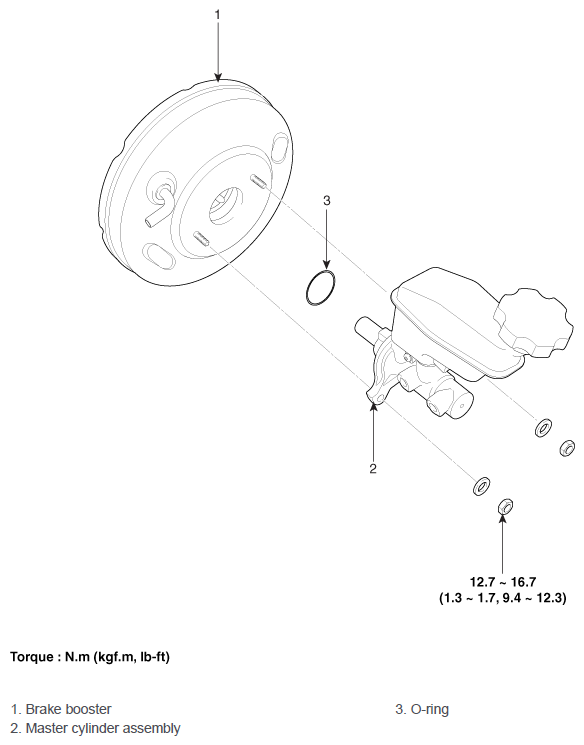

Fig 1: Brake Booster Components With Torque Specification

G12089623

Courtesy of HYUNDAI MOTOR AMERICA
