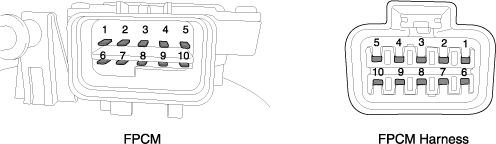

Terminal Illustration
Terminal Function
FEUL PUMP TERMINAL DESCRIPTION
| Pin No. | Description |
|---|---|
| 1 | Fuel sender ground |
| 2 | Fuel pressure sensor (FPS) signal input |
| 3 | Fuel pressure sensor (FPS) ground (-) |
| 4 | Ground |
| 5 | CAN [Low] |
| 6 | Fuel sender signal |
| 7 | - |
| 8 | Fuel pressure sensor (FPS) power supply (+5V) |
| 9 | CAN [High] |
| 10 | Battery power (B+) |
