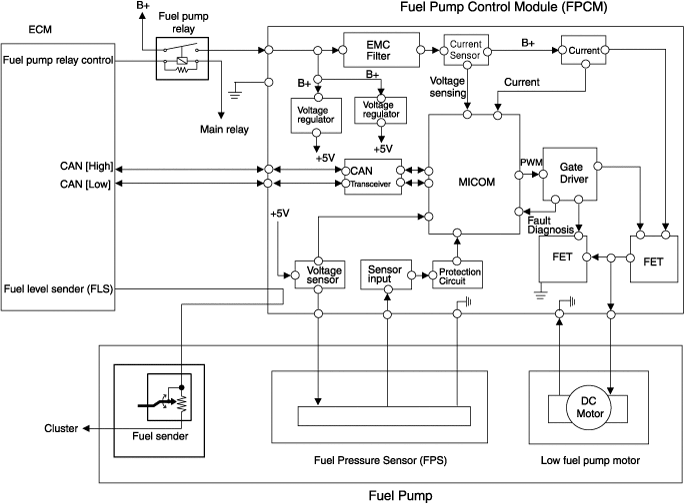

Home >> Hyundai >> 2016 >> Tucson Limited, FWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 1.6L >> Fuel Pump Control Module (FPCM) >> Schematic Diagrams >> Circuit Diagram
