Components and Components Location: Components

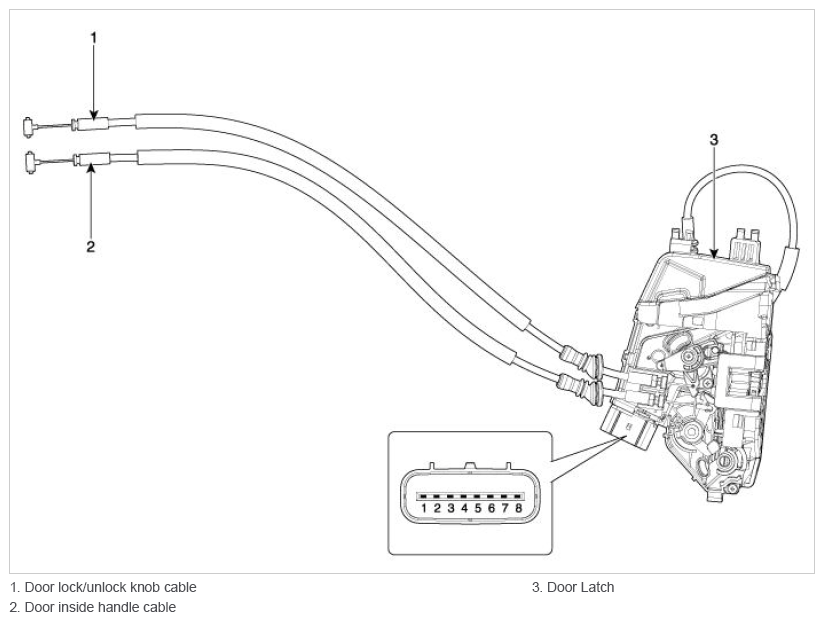

Fig 1: Power Door Lock Module Components Location

G11669995

Courtesy of HYUNDAI MOTOR AMERICA
