Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

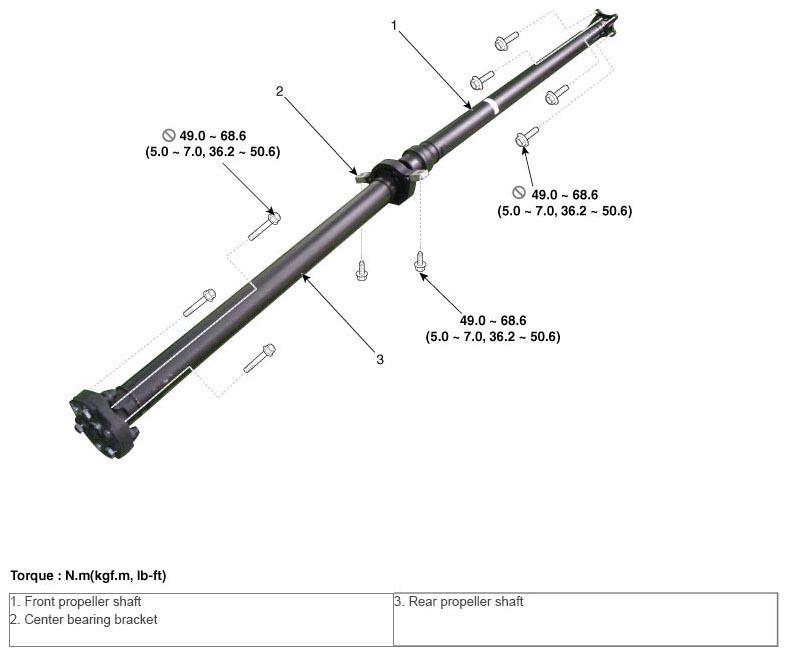

Fig 1: Propeller Shaft Components With Torque Specifications
G10575398Courtesy of HYUNDAI MOTOR AMERICA
