Trouble Diagnostics When Using GDS

Fig 1: Trouble Diagnostics When Using GDS

Courtesy of HYUNDAI MOTOR AMERICA

The body control module can diagnose by using the GDS more quickly.
The BCM communicates with the GDS and then reads the input/output value and drives the actuator.
To diagnose the BCM function, select the menu of model and body control module.
To consult the present input/output value of BCM, "Current DATA". It provides information of BCM input/output conditions of power supply, turn signal/brake lamp, headlamp, door, locks, outside mirror, wiper, auto-light and transmitters etc.
- BCM Service data

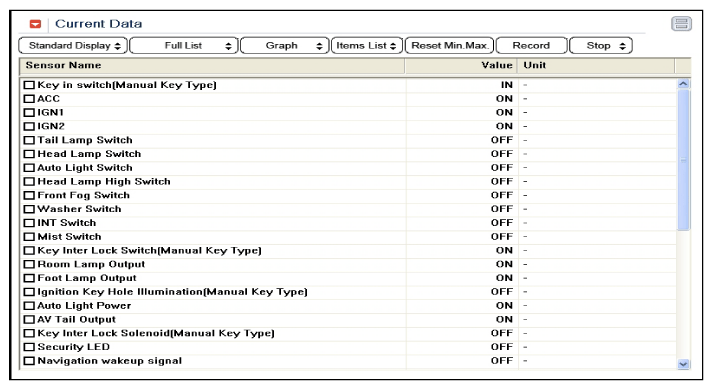

  Fig 2: Screen Display - BCM Service Data (1 Of 2)
  Courtesy of HYUNDAI MOTOR AMERICA

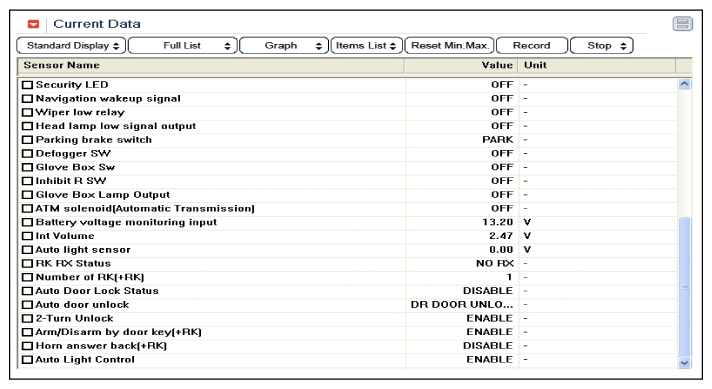

  Fig 3: Screen Display - BCM Service Data (2 Of 2)
  Courtesy of HYUNDAI MOTOR AMERICA
- CLU (Cluster) Service data

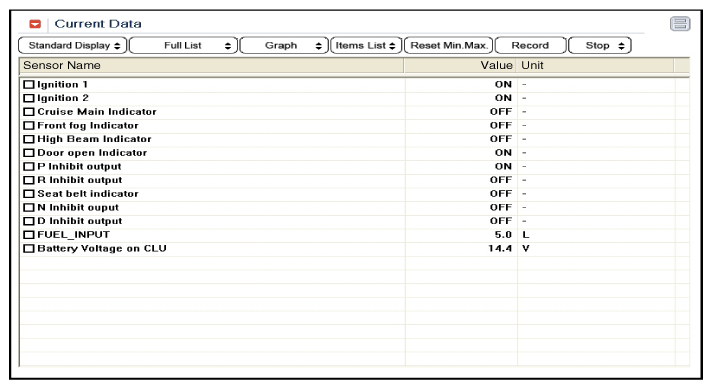

  Fig 4: Screen Display - CLU (Cluster) Service Data
  Courtesy of HYUNDAI MOTOR AMERICA
- SJB (Smart junction box) Service data

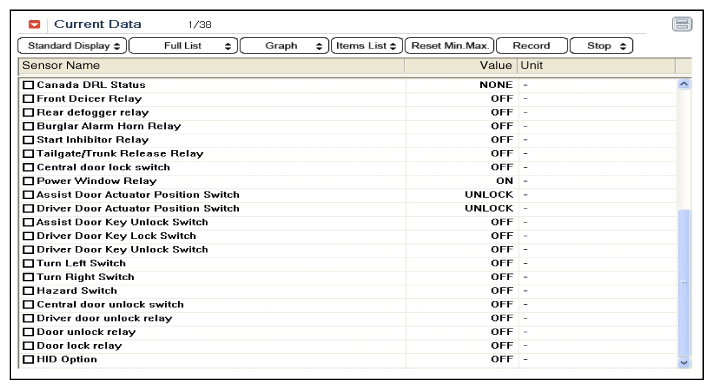

  Fig 5: Screen Display - SJB (Smart Junction Box) Service Data (1 Of 2)
  Courtesy of HYUNDAI MOTOR AMERICA

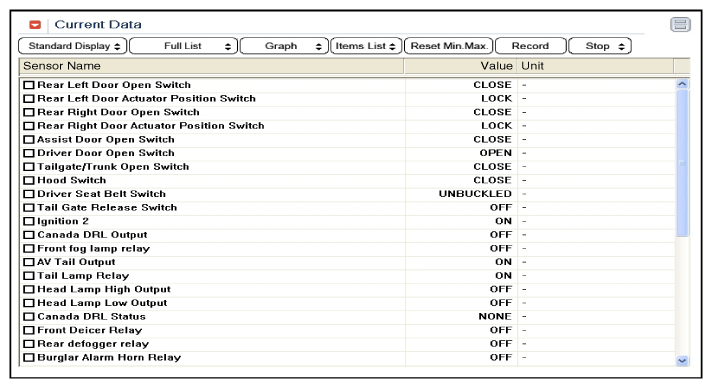

  Fig 6: Screen Display - SJB (Smart Junction Box) Service Data (2 Of 2)
  Courtesy of HYUNDAI MOTOR AMERICA
To perform compulsory operation on BCM input factors, select "ACTUATION TEST".

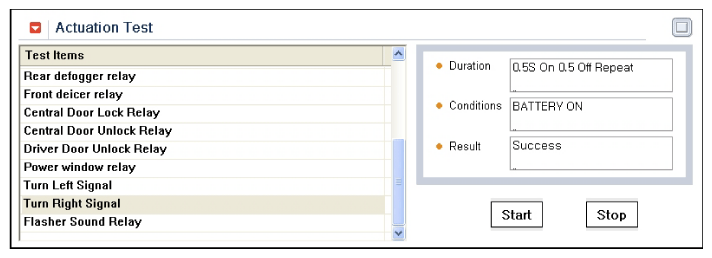

Fig 7: Screen Display - Actuation Test
Courtesy of HYUNDAI MOTOR AMERICA
