Components And Components Location: Components

M/T

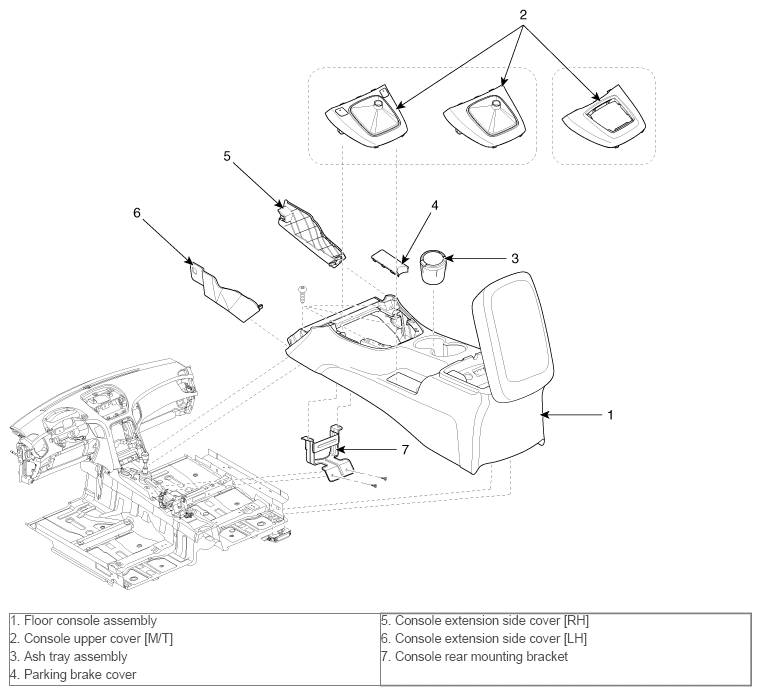

Fig 1: Console Components - Manual Transmission
G10489909Courtesy of HYUNDAI MOTOR AMERICA

A/T

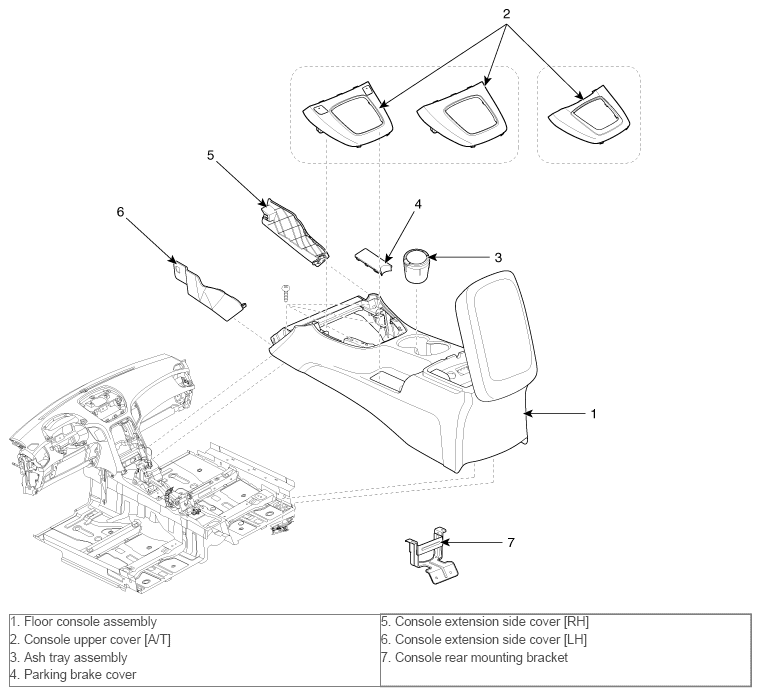

Fig 2: Console Components - Automatic Transmission
G10489910Courtesy of HYUNDAI MOTOR AMERICA
