Components and Components Location: Components

[2WD]

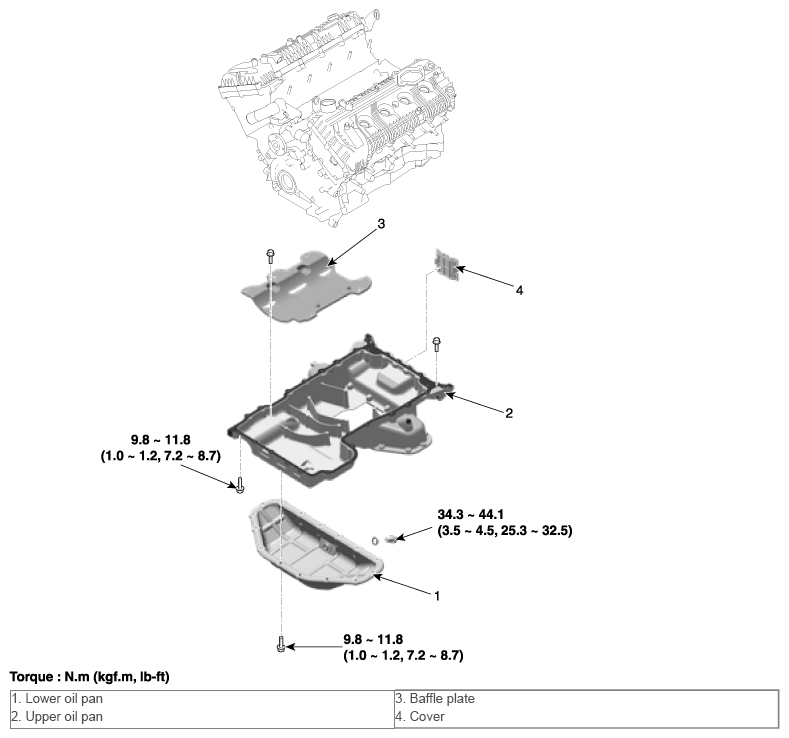

Fig 1: Oil Pan Components With Torque Specification (2WD)
G10464893Courtesy of HYUNDAI MOTOR AMERICA

[AWD]

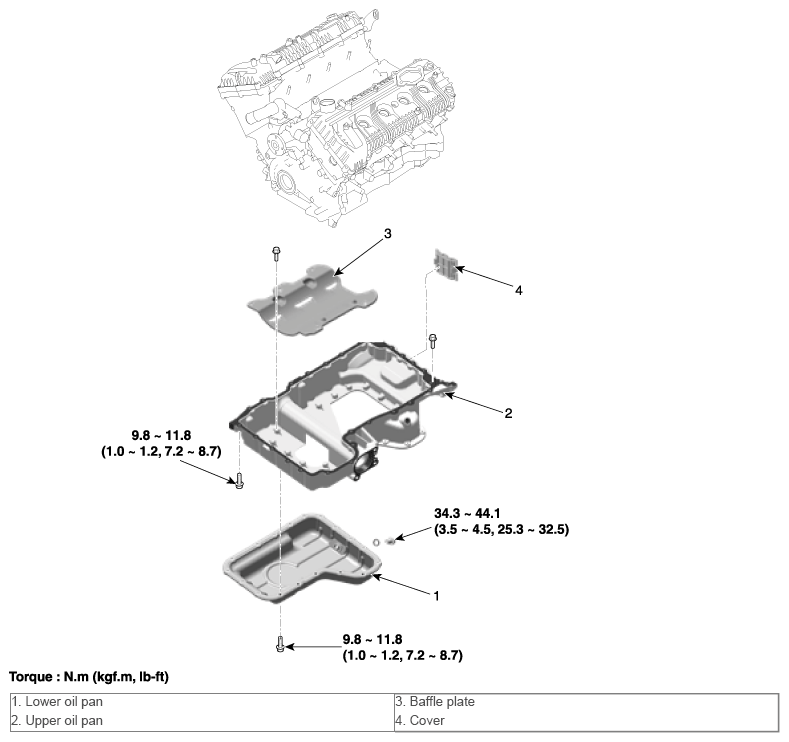

Fig 2: Oil Pan Components With Torque Specification (AWD)
G10464894Courtesy of HYUNDAI MOTOR AMERICA
