Components and Components Location: Components

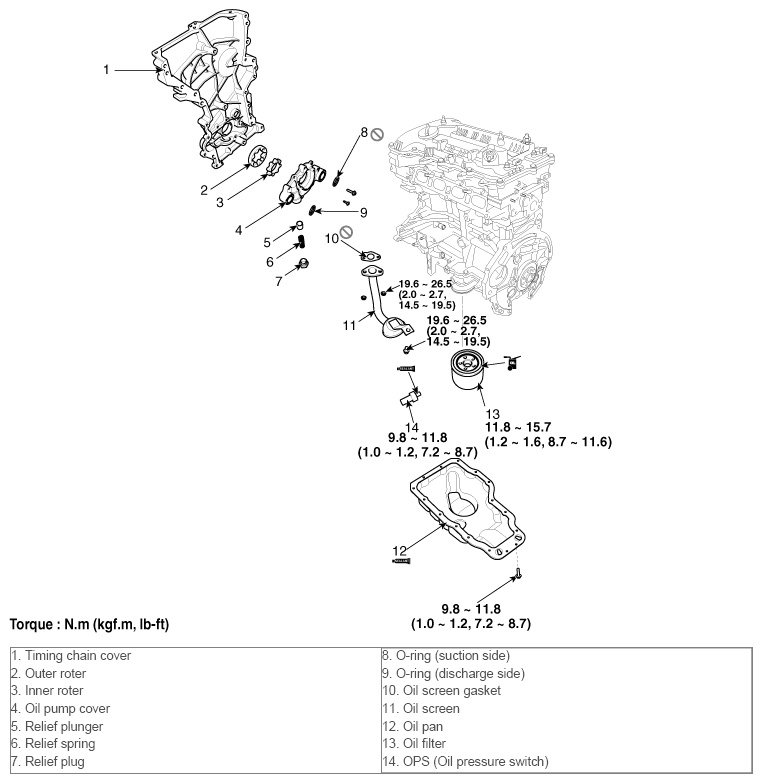

Fig 1: Oil Pump Components With Torque Specification

G10533867

Courtesy of HYUNDAI MOTOR AMERICA
