Starting System - 1.8L: Troubleshooting

NOTE:
  • The battery must be in good condition and fully charged for this troubleshooting.

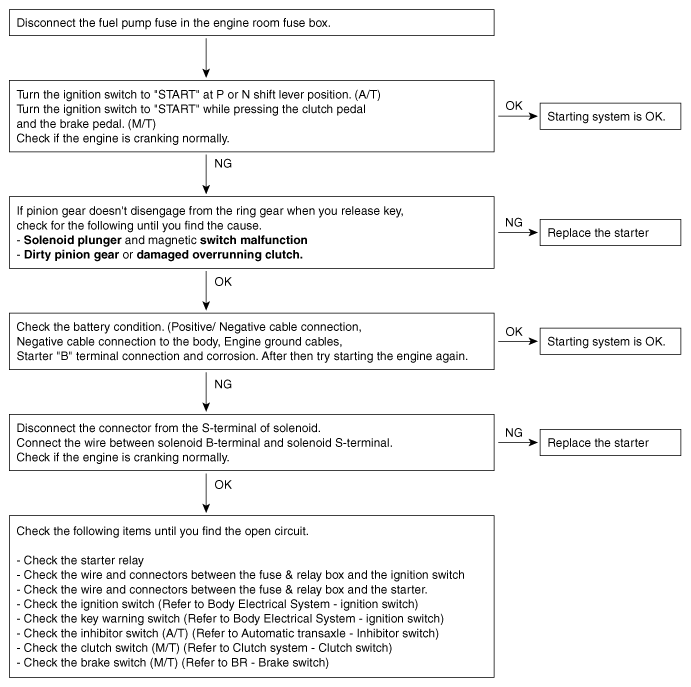

Fig 1: Starting System Troubleshooting Chart
G10530409Courtesy of HYUNDAI MOTOR AMERICA
