Components Location

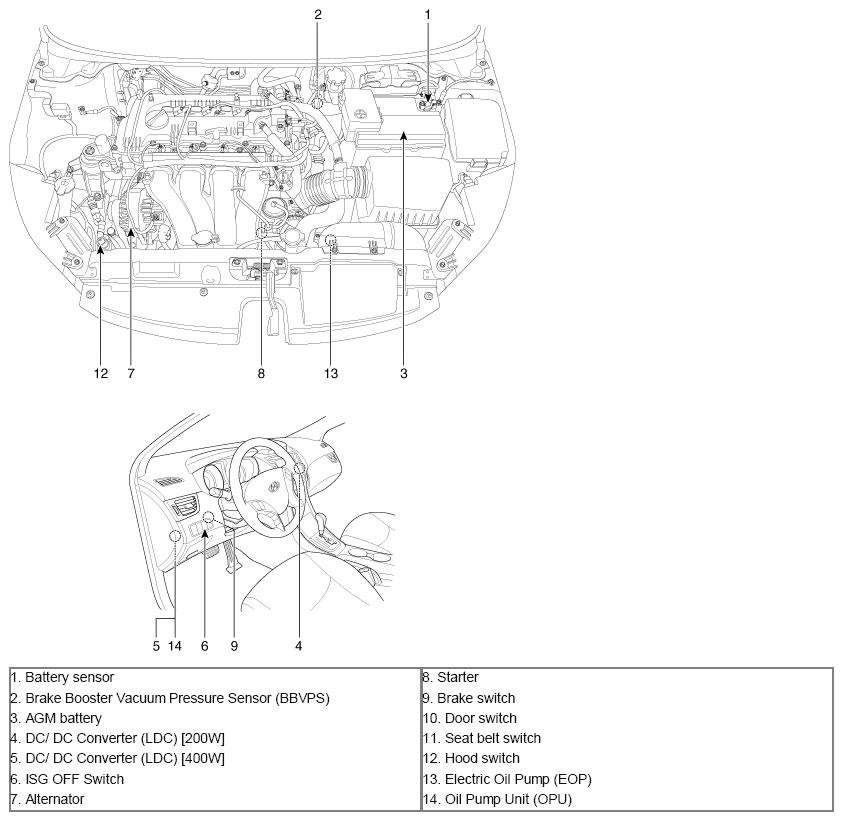

Fig 1: Idle Stop & Go (ISG) System Component Locations (1 Of 3)
G10537740Courtesy of HYUNDAI MOTOR AMERICA

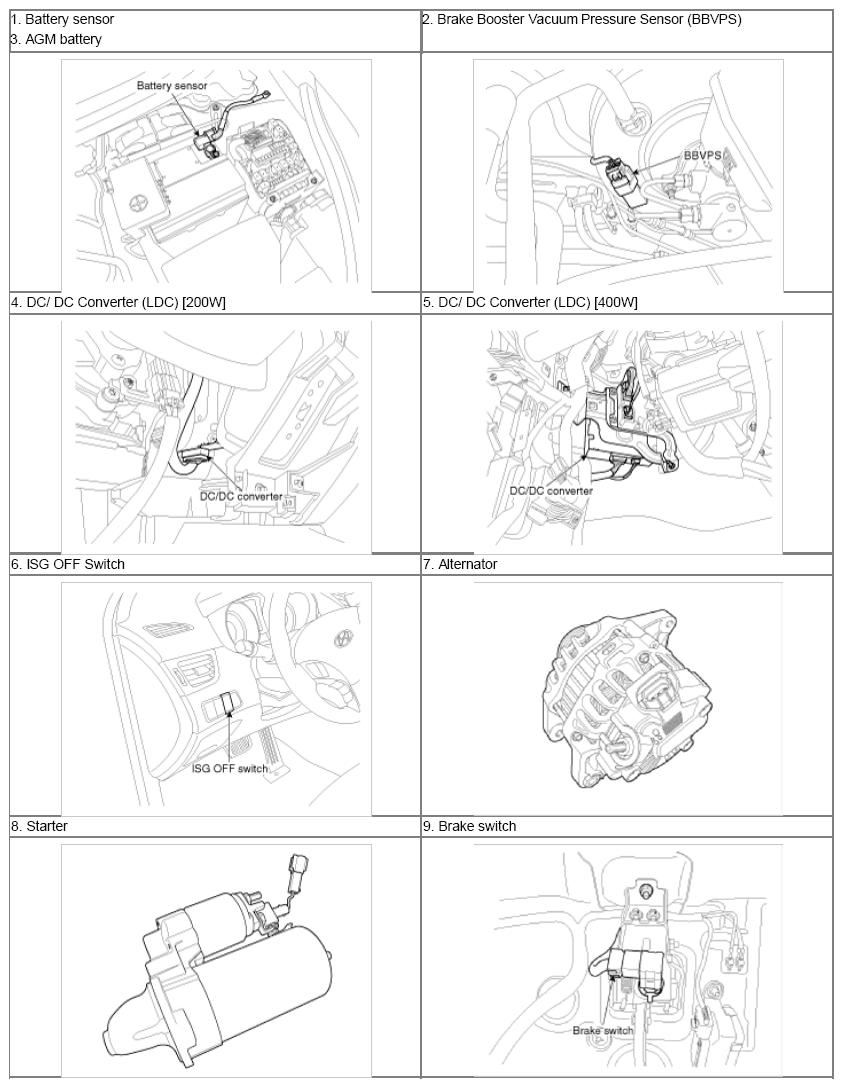

Fig 2: Idle Stop & Go (ISG) System Component Locations (2 Of 3)
G10537741Courtesy of HYUNDAI MOTOR AMERICA

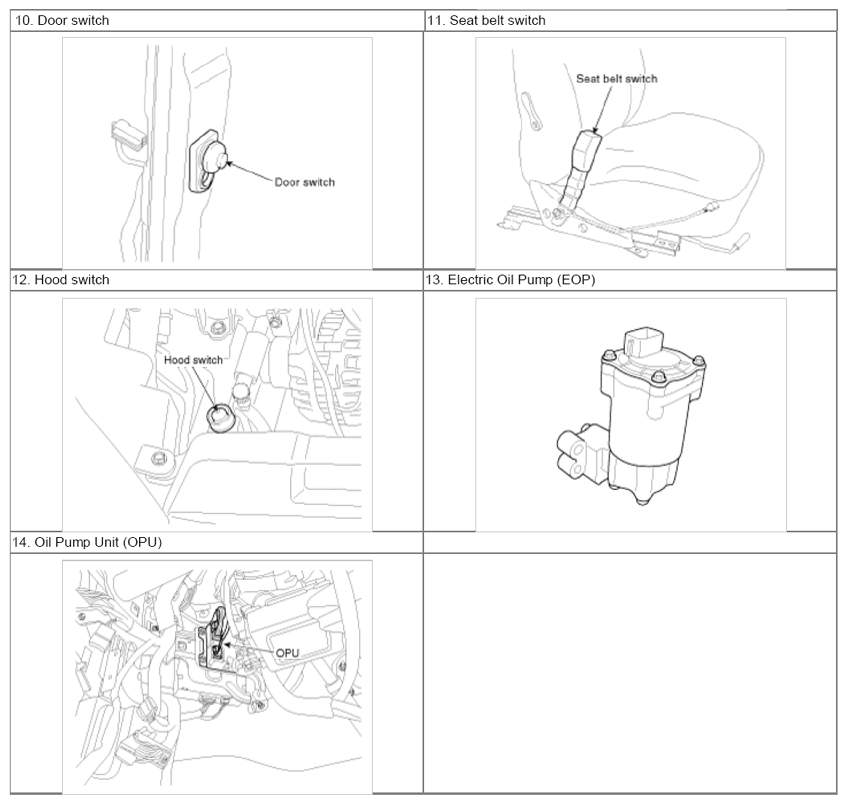

Fig 3: Idle Stop & Go (ISG) System Component Locations (3 Of 3)
G10537742Courtesy of HYUNDAI MOTOR AMERICA
