Components and Components Location: Components

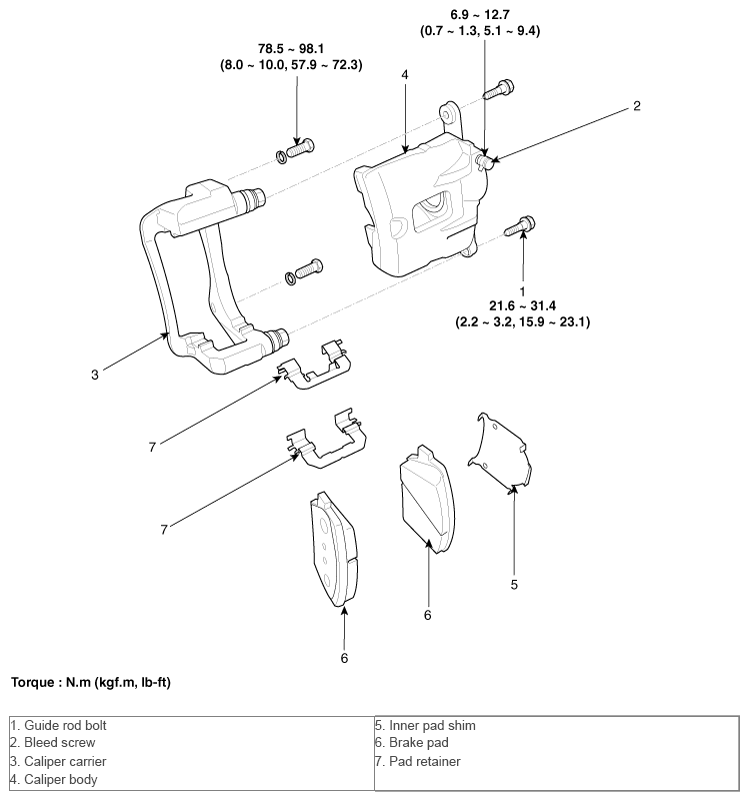

Fig 1: Front Disc Brake Components With Torque Specifications

G10368167

Courtesy of HYUNDAI MOTOR AMERICA
