Home >> Hyundai >> 2016 >> Azera Base >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brake System >> Brake Line >> Components and Components Location >> Components

Components and Components Location: Components

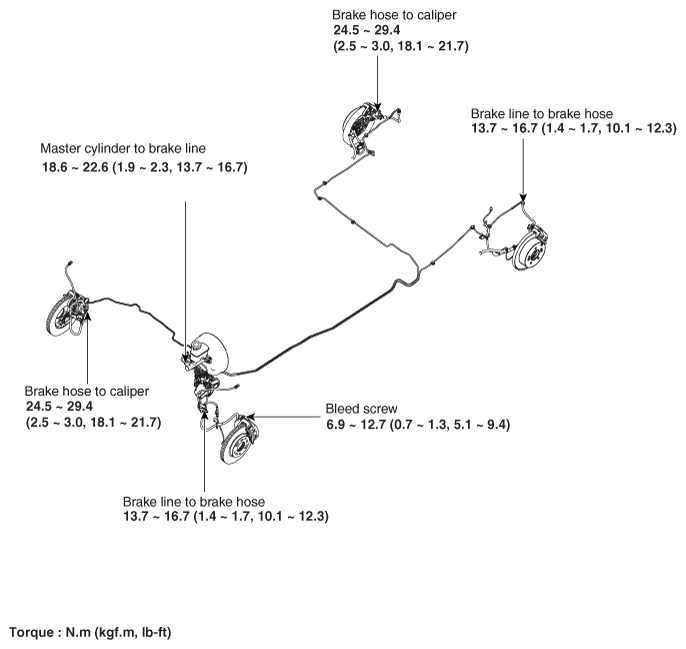

Fig 1: Brake Line Components With Torque Specifications

G10368142

Courtesy of HYUNDAI MOTOR AMERICA
