Variant Coding

  1. Connect GDS to Data Link Connector (DLC).
  2. IG "ON"
  3. Using GDS, Perform Variant coding program. (Fig 1).
  4. IG "OFF" and wait for about 10 seconds, and then IG "ON".
  5. IG "OFF" and wait for about 10 seconds again, and then, IG "ON.
  6. Refer to: "COMPONENT INSPECTION " procedure.

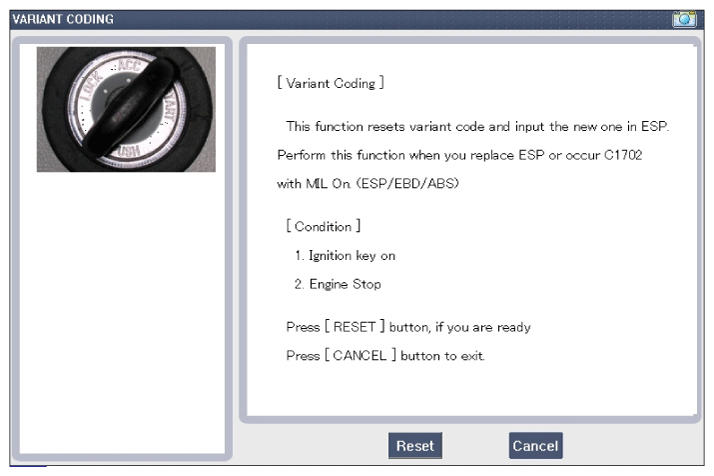

    Fig 1: Scantool Display - GDS Diagnostic Part (Variant Coding)
    G10556048Courtesy of HYUNDAI MOTOR AMERICA
