Repair Procedures: Removal

Remove the air duct.
(Refer to "AIR CLEANER ")
Remove the battery and the battery tray.
(Refer to "BATTERY ")
Remove the under cover.
Drain the coolant.
(Refer to "COOLANT ")

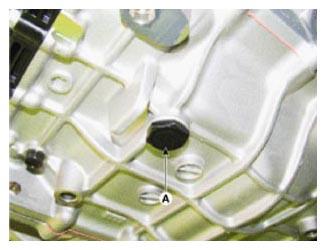

Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.
Drain plug tightening torque:

38.2 ~ 48.1 N.m (3.9 ~ 4.9 kgf.m, 28.2 ~ 35.4 lb-ft)

Fig 1: Drain Plug
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: The gasket of the drain plug use new one.

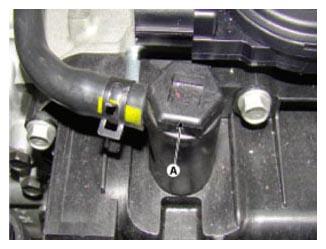

Remove the ATF Injection hole (eyebolt) (A).
Eyebolt tightening torque:

2.9 ~ 4.9 N.m (0.3 ~ 0.5 kgf.m, 2.2 ~ 3.6 lb-ft)

Fig 2: ATF Injection Hole (Eyebolt)
Courtesy of HYUNDAI MOTOR AMERICA

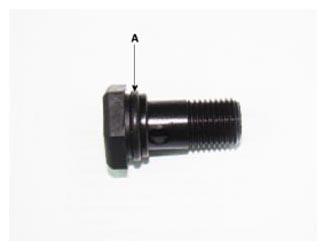

CAUTION: The O-Ring (A) of the eyebolt use new one.

Fig 3: Eyebolt O-Ring
Courtesy of HYUNDAI MOTOR AMERICA
Remove the valve body cover (A).
Tightening torque:

(A) 13.7 ~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6 lb-ft)

Fig 4: Valve Body Cover
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Use new valve body gasket (A).
Fig 5: Valve Body Gasket
Courtesy of HYUNDAI MOTOR AMERICA

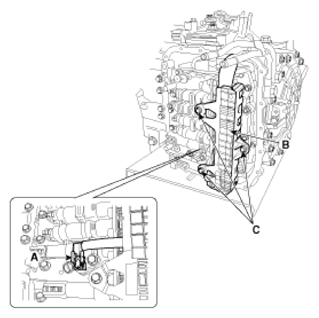

Remove the bolts (C) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 6: Solenoid Valve Connector And Oil Temperature Sensor Connector And Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the valve body assembly (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 7: Valve Body Assembly
Courtesy of HYUNDAI MOTOR AMERICA
