Fuel pump
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the fuel pump assembly.

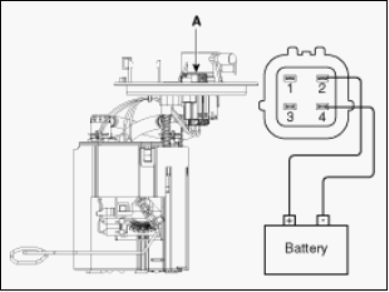

- Check motor operation by fuel pump connector (A) connecting power (No. 2) and ground (No. 4)
Courtesy of HYUNDAI MOTOR AMERICA
| Pin No. |
description |
| 1 |
Fuel sender signal |
| 2 |
Fuel pump (+) |
| 3 |
Fuel sender ground |
| 4 |
Fuel pump (-) |
