Components Location

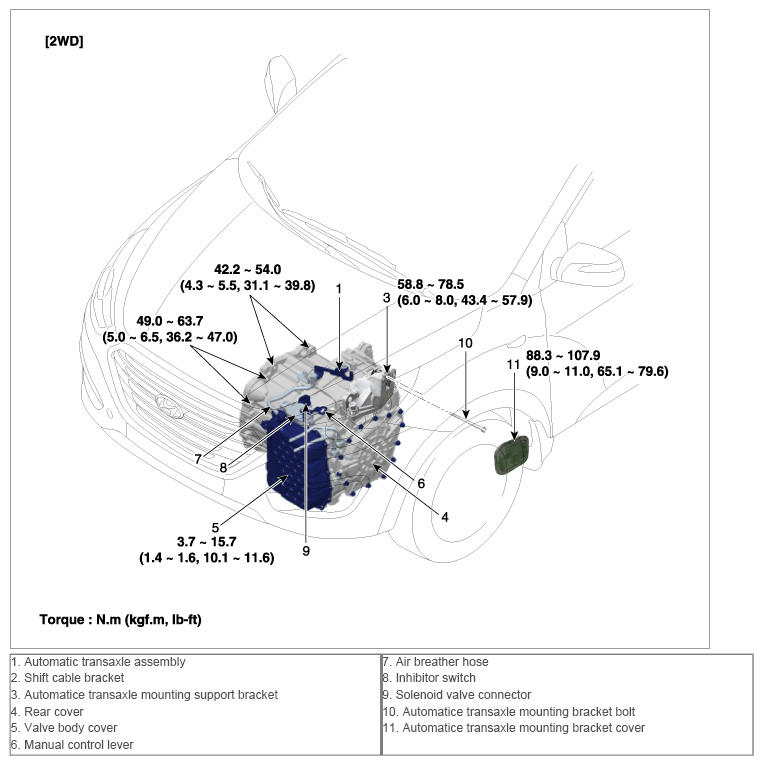

Fig 1: Automatic Transaxle System Components Location With Torque Specifications - 2.4L (2WD)
G09802426Courtesy of HYUNDAI MOTOR AMERICA

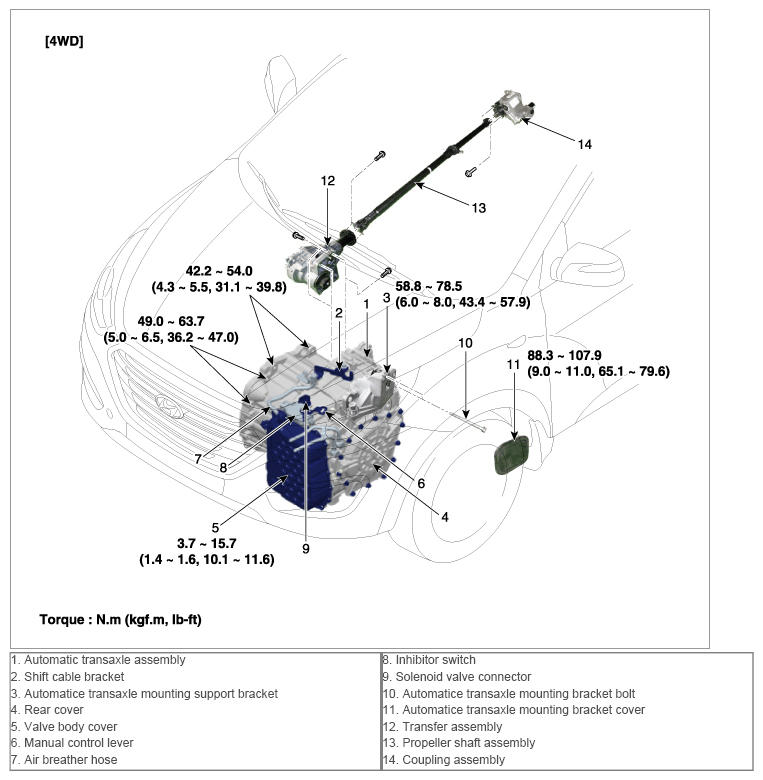

Fig 2: Automatic Transaxle System Components Location With Torque Specifications - 2.4L (4WD)
G09802427Courtesy of HYUNDAI MOTOR AMERICA
