Components and Components Location: Components

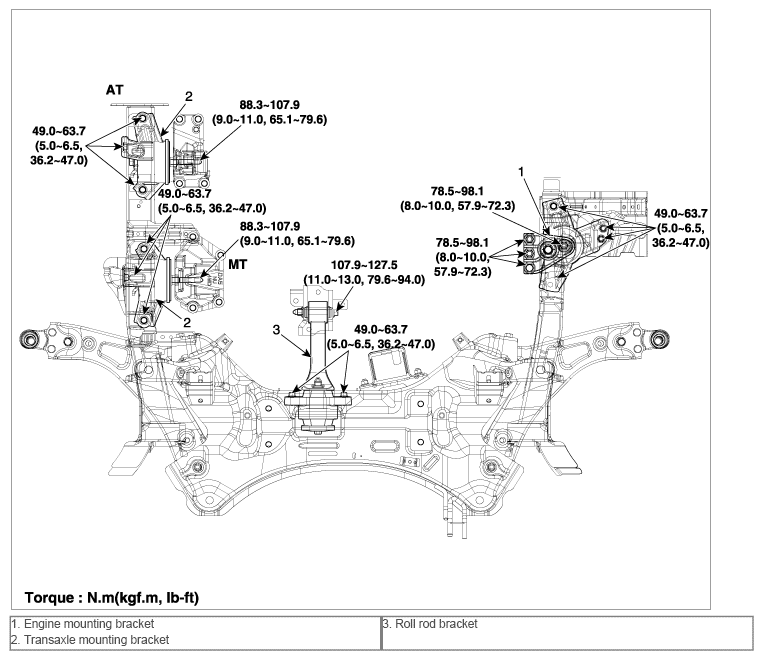

Fig 1: Engine Mounting Replacement Components With Torque Specifications

G09815208

Courtesy of HYUNDAI MOTOR AMERICA
