Home >> Hyundai >> 2014 >> Santa Fe GLS, AWD >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System >> Muffler And Catalytic Converter >> Components And Components Location >> Components

Components And Components Location: Components

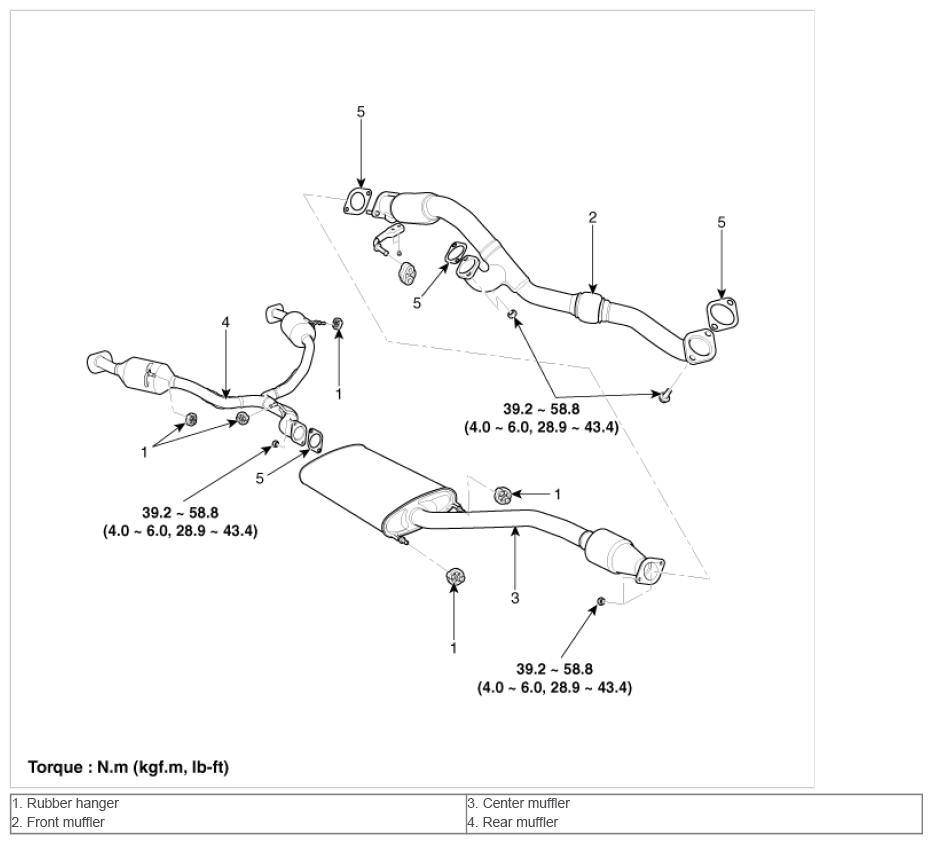

Fig 1: Rubber Hanger, Front Muffler, Center Muffler, Rear Muffler And Mounting Bolt With Torque Specification

G09267361

Courtesy of HYUNDAI MOTOR AMERICA
