Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the console upper cover (A).
    Fig 1: Identifying Console Upper Cover
    G00537509Courtesy of HYUNDAI MOTOR CO.
  3. Remove the center fascia lower panel (A).

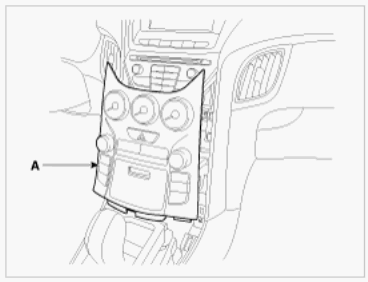

    Fig 2: Identifying Center Fascia Lower Panel
    G00537510Courtesy of HYUNDAI MOTOR CO.
  4. Remove the body control module (A) after loosening 2 nuts and disconnecting the connectors.

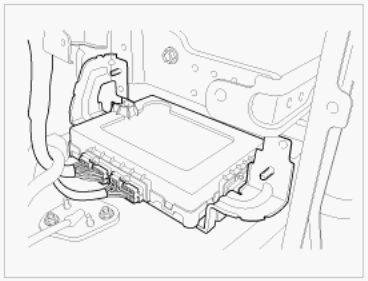

    Fig 3: Identifying Body Control Module
    G00538478Courtesy of HYUNDAI MOTOR CO.
