Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Loosen the airbag module mounting bolts (2 EA).

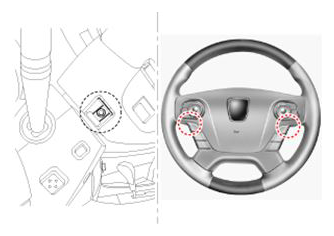

    Fig 1: Identifying Driver Airbag Module Mounting Bolts
    G09790140Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the wiring fixing clip (C) and disconnect the horn connector (A).

    Release the connector locking pin, then disconnect the driver airbag module connector (B).

    Disconnect the steering wheel remote control switch connector (D).

    Fig 2: Identifying Wiring Fixing Clip, Horn Connector, Driver Airbag Module Connector And Steering Wheel Remote Control Switch Connector
    G09790141Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
  4. Loosen the lock nut.
    Fig 3: Identifying Steering Lock Nut
    G09790142Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the steering wheel (A) from the steering column shaft by using a SST (09561-11001).
    Fig 4: Identifying Steering Wheel
    G09790143Courtesy of HYUNDAI MOTOR AMERICA
  6. Loosen the screw and then remove the steering column shroud (A).
    Fig 5: Identifying Steering Column Shroud With Screw
    G09790144Courtesy of HYUNDAI MOTOR AMERICA
  7. Disconnect the clock spring and horn connector, then remove the clock spring (A).
    Fig 6: Identifying Clock Spring
    G09790145Courtesy of HYUNDAI MOTOR AMERICA
