Repair Procedures: Installation

  1. Set the front tires straight-ahead.
  2. Turn the ignition switch OFF.
  3. Disconnect the battery negative cable from the battery and wait for at least three minutes before beginning the work.
  4. Connect the clock spring harness connector and horn harness connector to the clock spring.
  5. Centralize the clock spring.
    1. Turn the clock spring clockwise until it stops.
    2. From the stopped position, turn the clock spring counterclockwise 2 turns.
    3. Align the marks. See Fig 1.
      Fig 1: Identifying Clock Spring Aligning Marks
      G09790148Courtesy of HYUNDAI MOTOR AMERICA
  6. Install the steering wheel column shroud and the steering wheel.
  7. Connect the driver airbag (DAB) module connector and horn connector, and then install the driver airbag (DAB) module on the steering wheel.
  8. Tighten the mounting bolts (2 EA).

    Tightening torque:

    7.8 ~ 10.8 N.m (0.8 ~ 1.1 kgf.m, 5.8 ~ 8.0 lb-ft)

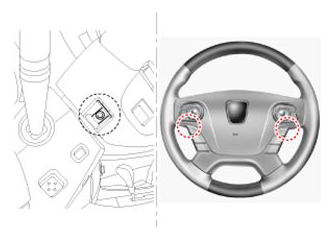

    Fig 2: Identifying Driver Airbag Module Mounting Bolts
    G09790149Courtesy of HYUNDAI MOTOR AMERICA
  9. Connect the battery negative cable.
  10. After installing the driver airbag, confirm proper system operation:
    1. Turn the ignition switch ON; the SRS indicator light should turn on for about six seconds and then go off.
    2. Make sure the horn button works.
