Schematic Diagram: Notes

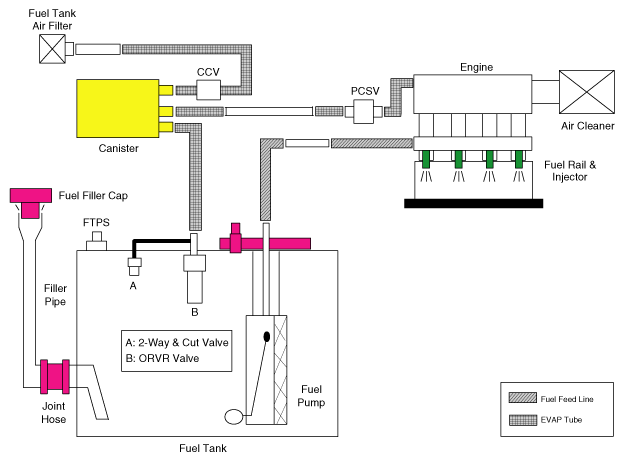

Fig 1: Evaporative Emission Control Schematic
G09789285Courtesy of HYUNDAI MOTOR AMERICA
