Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

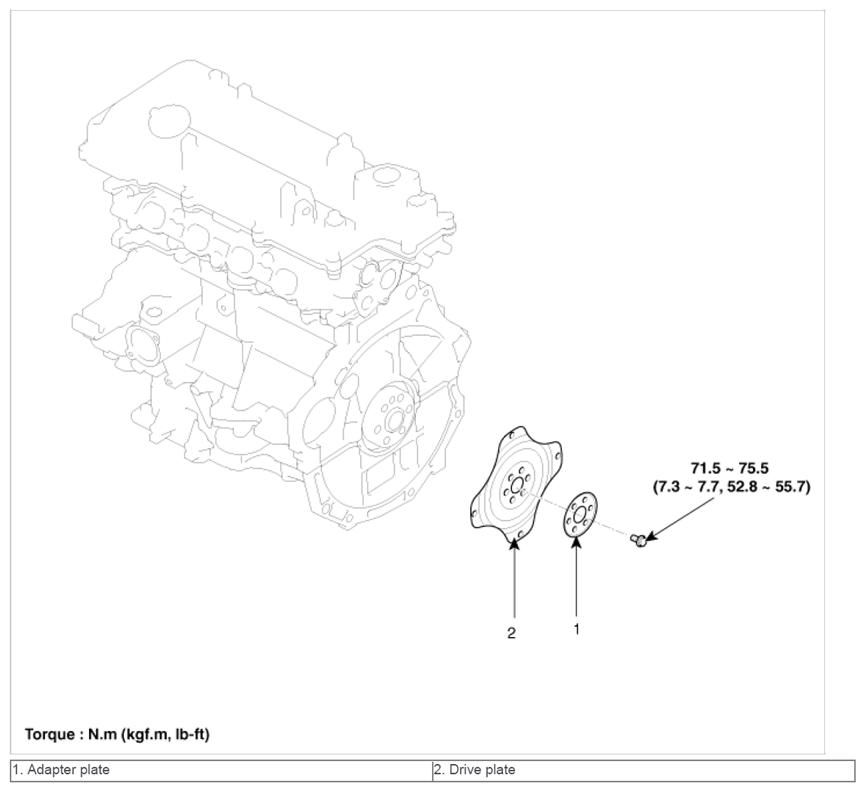

Fig 1: Adapter & Drive Plate With Torque Specifications
G09150097Courtesy of HYUNDAI MOTOR AMERICA
