Repair Procedures: Inspection: Notes

WARNING: This page is about a different variant/trim than selected.

Connecting Rod And Crankshaft

  1. Check the connecting rod end play.

    Using feeler gauge, measure the end play while moving the connecting rod back and forth.

    End play

    Standard: 0.10 ~ 0.25 mm (0.0039 ~ 0.0098 in)

    Maximum: 0.35 mm (0.0138 in)

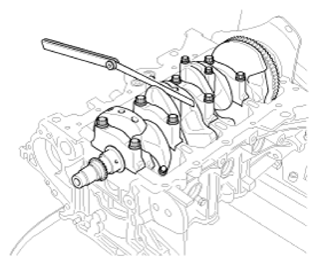

    Fig 1: Measuring Connecting Rod End Play Using Feeler Gauge
    G09150112Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • If out-of-tolerance, install a new connecting rod.
    • If still out-of-tolerance, replace the crankshaft.
  2. Check the connecting rod bearing oil clearance.
    1. Check the match marks on the connecting rod and cap are aligned to ensure correct reassembly.
    2. Remove the 2 connecting rod cap bolts.
    3. Remove the connecting rod cap and lower bearing.
    4. Clean the crankshaft pin journal and bearing.
    5. Place a plastigage across the crankshaft pin journal.
    6. Reinstall the lower bearing and cap, and tighten the bolts. Do not reuse the bolts.

      Tightening torque:

      17.7 ~ 21.6 N.m (1.8 ~ 2.2kgf.m, 13.0 ~ 15.9 lb-ft) + 88 ~ 92°

      NOTE: Do not turn the crankshaft.
    7. Remove the 2 bolts, connecting rod cap and lower bearing.
    8. Measure the plastigage at its widest point.

      Standard oil clearance

      0.032 ~ 0.052 mm (0.0013 ~ 0.0020 in)

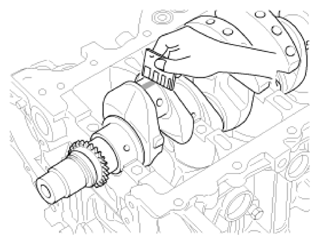

      Fig 2: Measuring Plastigage At Widest Point
      G09150113Courtesy of HYUNDAI MOTOR AMERICA
    9. If the measurement from the plastigage is too wide or too narrow, remove the upper and lower bearing and then install a new bearings with the same color mark.

      Recheck the oil clearance.

      CAUTION: Do not file, shim, of scrape the bearings or the caps to adjust clearance.
    10. If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing.
      NOTE: If the proper clearance cannot be obtained by using the appropriate larger or smaller bearings, replace the crankshaft and restart over.
      CAUTION: If the marks are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

      Connecting Rod Mark Location

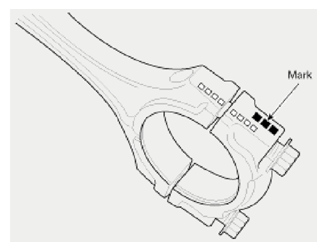

      Fig 3: Connecting Rod Mark Location
      G09150114Courtesy of HYUNDAI MOTOR AMERICA
      DISCRIMINATION OF CONNECTING ROD

      Mark Connecting rod big-end inner diameter
      A, 0 45.000 ~ 45.006 mm (1.7717 ~ 1.7719 in)
      B, 00 45.006 ~ 45.012 mm (1.7719 ~ 1.7721 in)
      C, 000 45.012 ~ 45.018 mm (1.7721 ~ 1.7724 in)

      Crankshaft Pin Diameter Mark Location

      Fig 4: Crankshaft Pin Diameter Mark Location
      G09150116Courtesy of HYUNDAI MOTOR AMERICA
      DISCRIMINATION OF CRANKSHAFT PIN DIAMETER

      Mark Crankshaft pin outer diameter
      1 41.954 ~ 41.960 mm (1.6517 ~ 1.6520 in)
      2 41.966 ~ 41.960 mm (1.6522 ~ 1.6520 in)
      3 41.960 ~ 41.954 mm (1.6520 ~ 1.6517 in)

      Connecting Rod Bearing Color Location

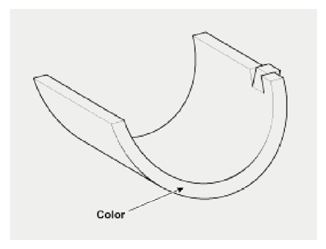

      Fig 5: Connecting Rod Bearing Color Location
      G09150115Courtesy of HYUNDAI MOTOR AMERICA
      DISCRIMINATION OF CONNECTING ROD BEARING

      Mark Color Connecting rod bearing thickness
      A Blue 1.514 ~ 1.517 mm (0.0596 ~ 0.0597 in)
      B Black 1.511 ~ 1.514 mm (0.0595 ~ 0.0596 in)
      C None 1.508 ~ 1.511 mm (0.0594 ~ 0.0595 in)
      D Green 1.505 ~ 1.508 mm (0.0593 ~ 0.0594 in)
      E Red 1.502 ~ 1.505 mm (0.0591 ~ 0.0593 in)
    11. Select the bearing by using selection table.
      CONNECTING ROD BEARING SELECTION SPECIFICATION

        Connecting rod mark
      A, 0 B, 00 C, 000
      Crank shaft pin journal mark  1 E (Red) D (Green) C (None)
      2 D (Green) C (None) B (Black)
      3 C (None) B (Black) A (Blue)
  3. Check the connecting rods.
    1. When reinstalling, make sure that cylinder numbers put on the connecting rod and cap at disassembly match. When a new connecting rod is installed, make sure that the notches for holding the bearing in place are on the same side.
    2. Replace the connecting rod if it is damaged on the thrust faces at either end. Also if step wear or a severely rough surface of the inside diameter of the small end is apparent, the rod must be replaced as well.
    3. Using a connecting rod aligning tool, check the rod for bend and twist. If the measured value is close to the repair limit, correct the rod by a press. Any connecting rod that has been severely bent or distorted should be replaced.

      Allowable bend of connecting rod:

      0.05 mm/100 mm (0.0020 in/3.94 in) or less

      Allowable twist of connecting rod:

      0.10 mm/100 mm (0.0039 in/3.94 in) or less

      NOTE: When the connecting rods installed without bearings, there should be no difference on side surface.
  4. Check the crankshaft bearing oil clearance.
    1. To check main bearing-to-journal oil clearance, remove the main bearing caps and lower bearings.
    2. Clean each main journal and lower bearing with a clean shop towel.
    3. Place one strip of plastigage across each main journal.
    4. Reinstall the lower bearings and caps, then tighten the bolts.

      Tightening torque:

      17.7~21.6 Nm (1.8~2.2kgf.m, 13.0~15.9 lb-ft) + 88~92°

      NOTE: Do not turn the crankshaft.
    5. Remove the cap and lower bearing again, and measure the widest part of the plastigage.

      Standard oil clearance:

      No. 1, 2, 3, 4, 5: 0.021 ~ 0.042 mm (0.0008 ~ 0.0017 in)

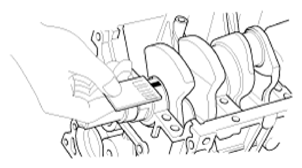

      Fig 6: Measuring Widest Part Of Plastigage
      G09150117Courtesy of HYUNDAI MOTOR AMERICA
    6. If the plastigage measures too wide or too narrow, remove the upper and lower bearing and then install a new bearings with the same color mark. (Refer to CRANKSHAFT MAIN BEARING SELECTION SPECIFICATION ) .

      Recheck the oil clearance.

      CAUTION: Do not file, shim, or scrape the bearings or the cap to adjust clearance.
    7. If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing. (Refer to CRANKSHAFT MAIN BEARING SELECTION SPECIFICATION ) .

      Recheck the oil clearance.

      NOTE: If the proper clearance cannot be obtained by using the appropriate larger or smaller bearings, replace the crankshaft and start over.
      CAUTION: If the marks are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

      Cylinder block crankshaft journal bore mark location

      Letters have been stamped on the side surface of the block as a mark (A) for the size of each of the 5 main journal bores.

      Use them, and the numbers or letters stamped on the crank (marks for main journal size), to choose the correct bearings.

      Fig 7: Cylinder Block Crankshaft Journal Bore Mark Location
      G09150118Courtesy of HYUNDAI MOTOR AMERICA
      DISCRIMINATION OF CYLINDER BLOCK CRANKSHAFT JOURNAL BORE

      Mark Cylinder block crankshaft journal bore inner diameter
      A 52.000 ~ 52.006 mm (2.0472 ~ 2.0475 in)
      B 52.006 ~ 52.012 mm (2.0475 ~ 2.0477 in)
      C 52.012 ~ 52.018 mm (2.0477 ~ 2.0479 in)

      Crankshaft Main Journal Mark Location

      Fig 8: Crankshaft Main Journal Mark Location
      G09150120Courtesy of HYUNDAI MOTOR AMERICA
      DISCRIMINATION OF CRANKSHAFT MAIN JOURNAL

      Mark Crankshaft main journal outer diameter
      1 47.960 ~ 47.954 mm (1.8882 ~ 1.8879 in)
      2 47.954 ~ 47.948 mm (1.8879 ~ 1.8877 in)
      3 47.948 ~ 47.942 mm (1.8877 ~ 1.8875 in)

      Crankshaft Main Bearing Color Location

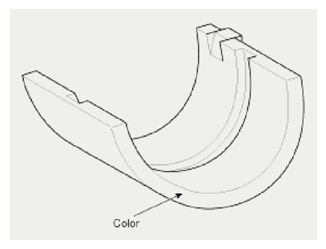

      Fig 9: Crankshaft Main Bearing Color Location
      G09150119Courtesy of HYUNDAI MOTOR AMERICA
      DISCRIMINATION OF CRANKSHAFT MAIN BEARING

      Mark Color Crankshaft main bearing thickness
      No. 1, 2, 3, 4, 5
      A Blue 2.026 ~ 2.029 mm (0.0798 ~ 0.0799 in)
      B Black 2.023 ~ 2.026 mm (0.0796 ~ 0.0798 in)
      C None 2.020 ~ 2.023 mm (0.0795 ~ 0.0796 in)
      D Green 2.017 ~ 2.020 mm (0.0794 ~ 0.0795 in)
      E Red 2.014 ~ 2.017 mm (0.0793 ~ 0.0794 in)
    8. Select the bearing by using selection table.
      CRANKSHAFT MAIN BEARING SELECTION SPECIFICATION

        Cylinder block crankshaft journal bore mark
      A B C
      Crank shaft main journal mark  1 E (Red) D (Green) C (None)
      2 D (Green) C (None) B (Black)
      3 C (None) B (Black) A (Blue)
  5. Check the crankshaft end play.

    Using a dial indicator, measure the thrust clearance while prying the crankshaft back and forth with a screwdriver.

    End play

    Standard: 0.05 ~ 0.25 mm (0.0020 ~ 0.0098 in)

    Limit: 0.30 mm (0.0118 in)

    If the end play is greater than maximum, replace the center bearing.
