Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

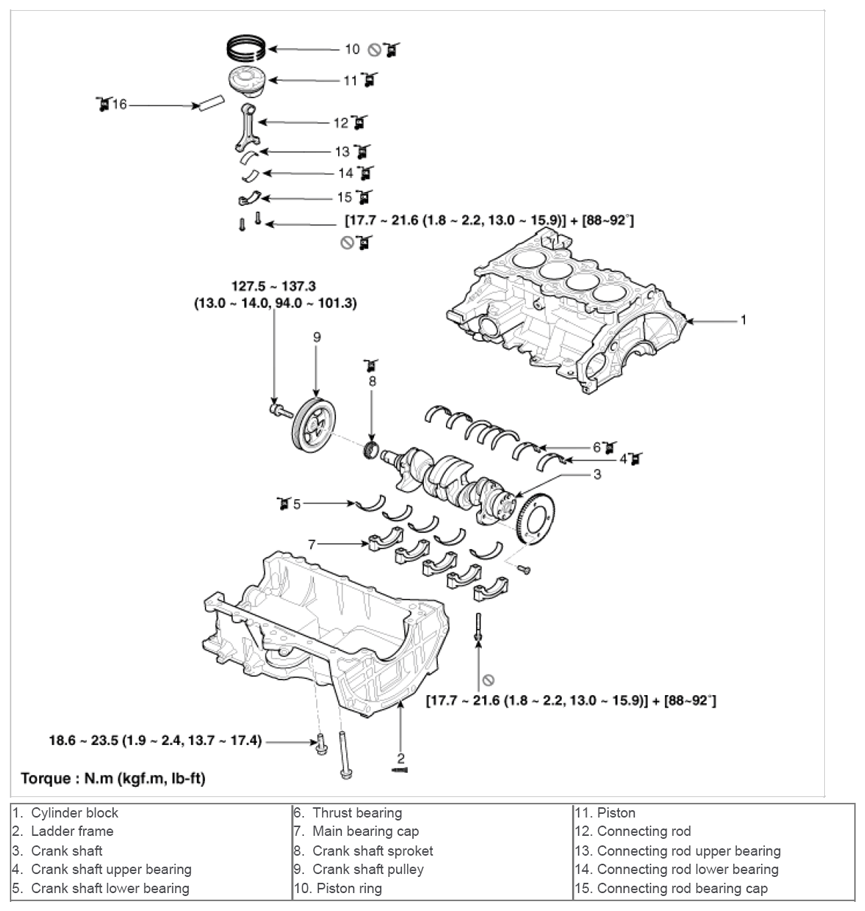

Fig 1: Cylinder Block Components With Torque Specifications
G09150106Courtesy of HYUNDAI MOTOR AMERICA
