Components and Components Location: Components

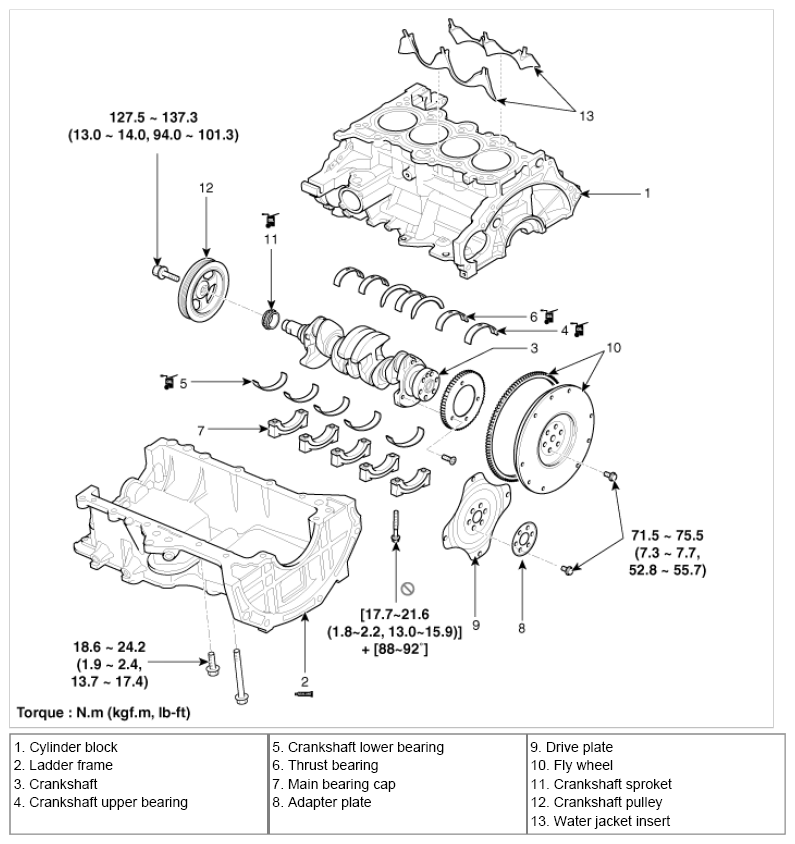

Fig 1: Cylinder Block Replacement Components With Torque Specifications
G08806710Courtesy of HYUNDAI MOTOR AMERICA

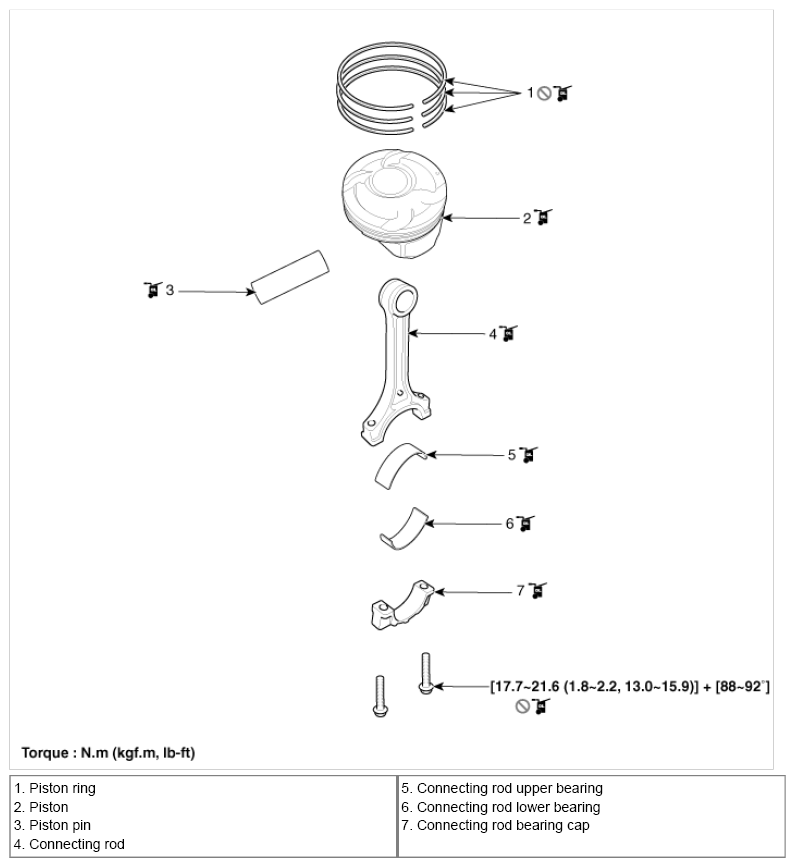

Fig 2: Piston And Connecting Rod Assembly Replacement Components With Torque Specifications
G08806711Courtesy of HYUNDAI MOTOR AMERICA
