Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the auto light sensor (A) from crash pad upper side by using screw (-) driver.

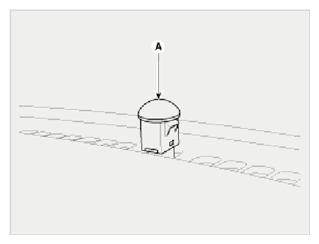

    Fig 1: Auto Light Sensor
    G09135317Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: Apply the protective tapes to screw (-) driver tip.
  3. Remove the auto light connector.
