Components Location

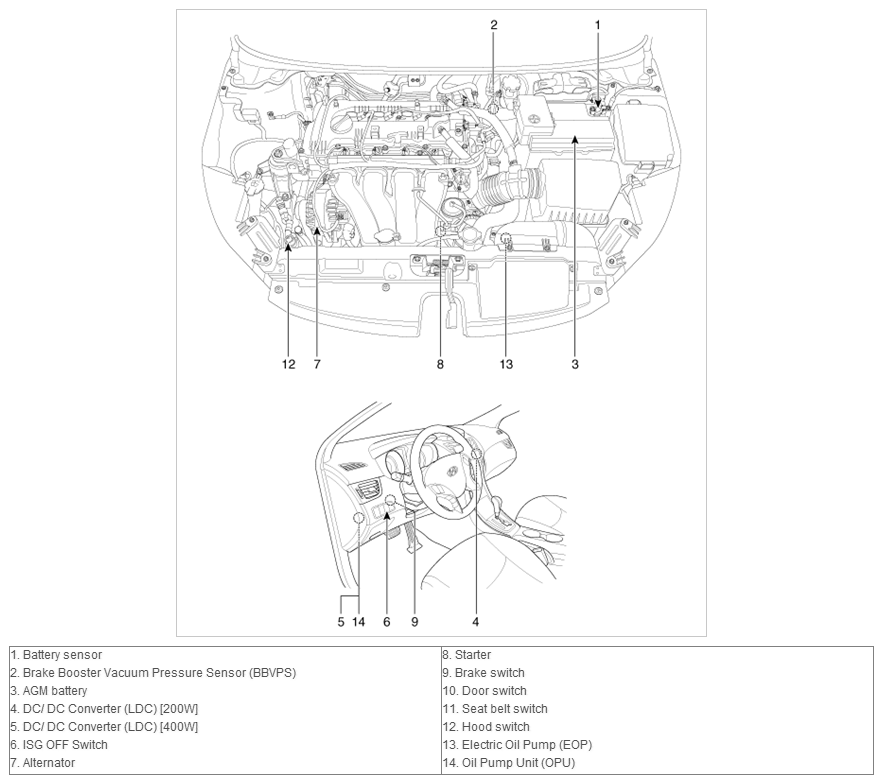

Fig 1: ISG (Idle Stop & Go) System (1 Of 3)
G10234532Courtesy of HYUNDAI MOTOR AMERICA

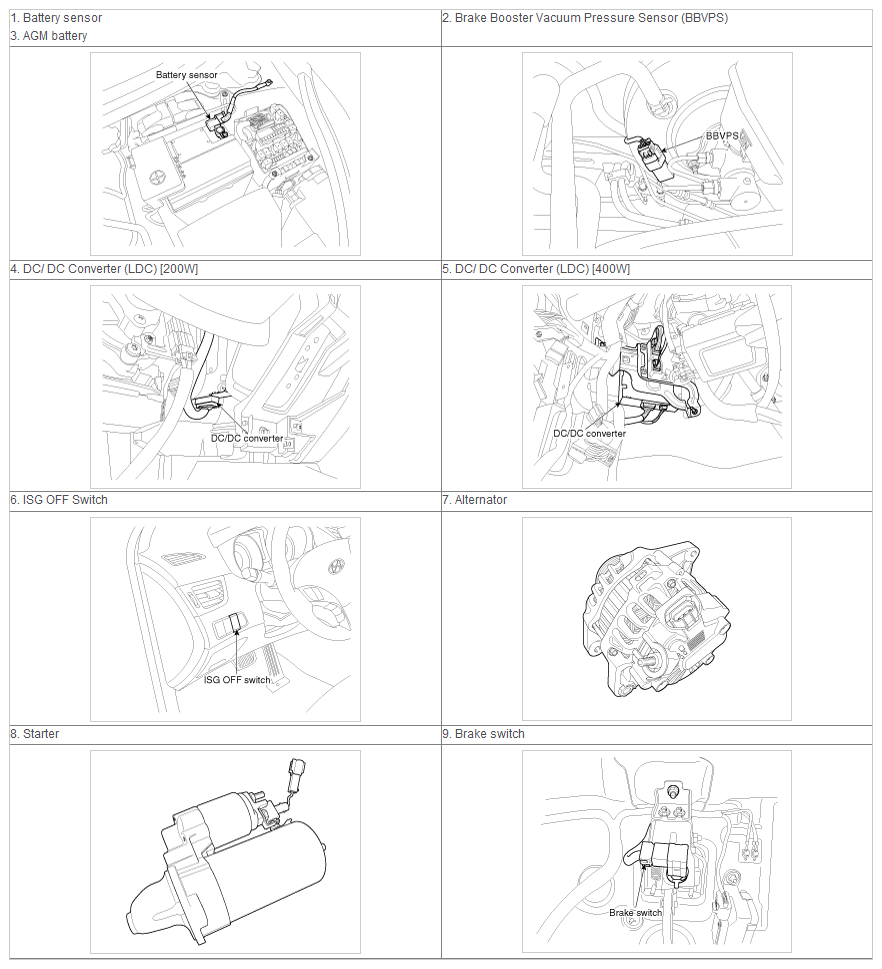

Fig 2: ISG (Idle Stop & Go) System (2 Of 3)
G10234533Courtesy of HYUNDAI MOTOR AMERICA

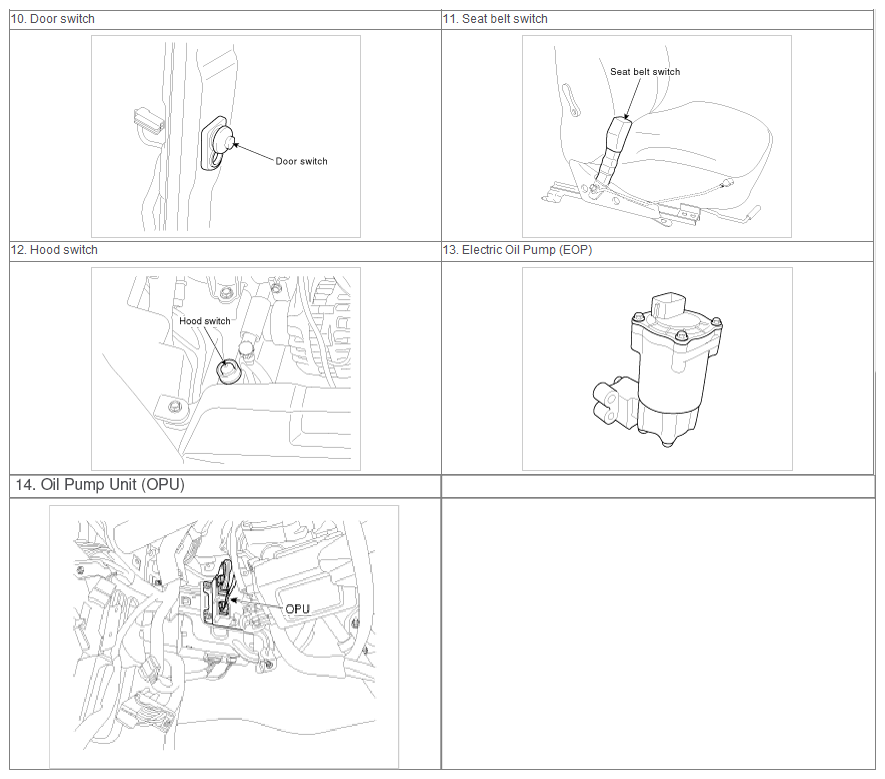

Fig 3: ISG (Idle Stop & Go) System (3 Of 3)
G10234534Courtesy of HYUNDAI MOTOR AMERICA
