Multifunction Switch Connector End View (M01)

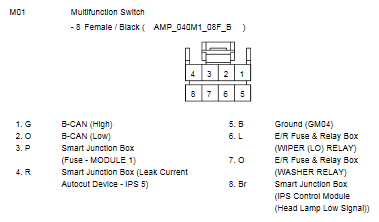

Fig 1: Multifunction Switch Connector End View (M01)

G10775304

Courtesy of HYUNDAI MOTOR AMERICA
