Frames, Subframes & Crossmembers
>>
Body Dimensions
>>
Under Body
>>
Body Repair
>>
Projected Dimensions
Projected Dimensions

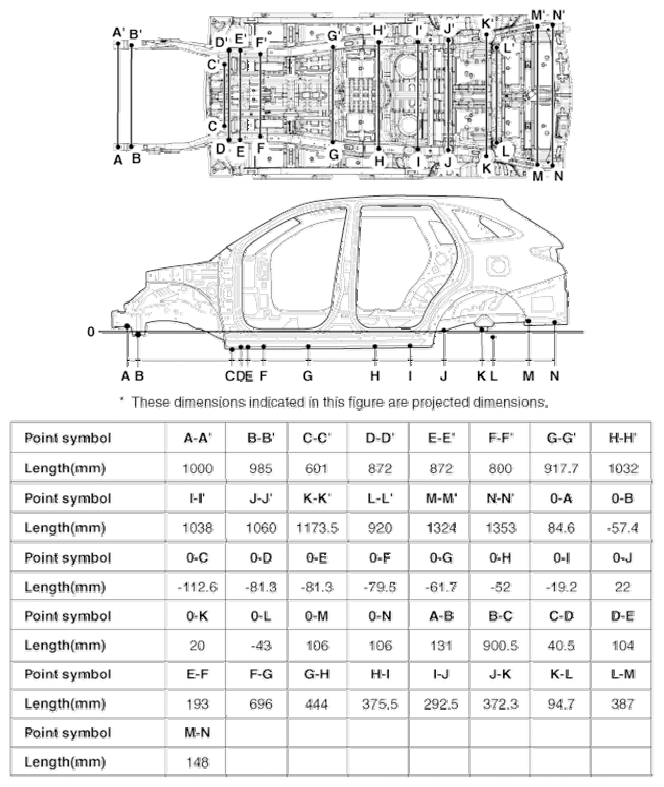

Fig 1: Identifying Under Body Projected Dimensions (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

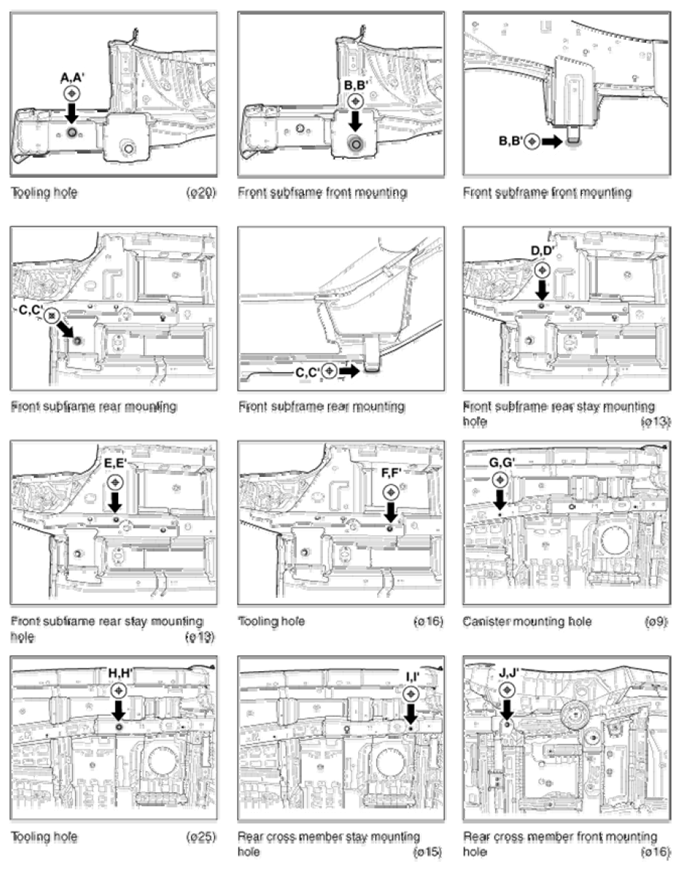

Fig 2: Identifying Under Body Projected Dimensions (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

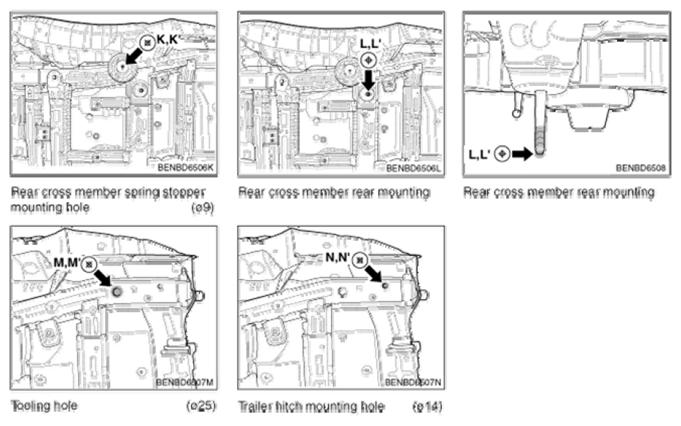

Fig 3: Identifying Under Body Projected Dimensions (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
