Components and Components Location: Components

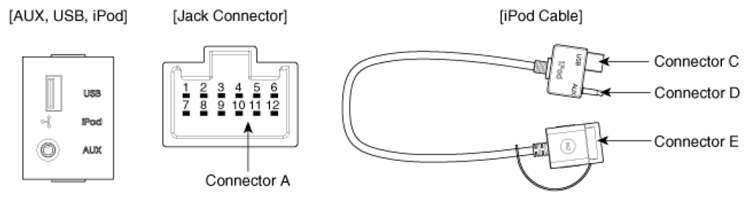

MULTIMEDIA JACK CONNECTORS REFERENCE CHART
| Name | Multi-media Jack Connector A (AUX/iPod) | Multi-media Jack Connector B (USB) | USB Connector C | AUX Connector D | iPod Connector E |
|---|---|---|---|---|---|
| Connector | |||||
| 1 | AUX L IN | USB VCC | USB/iPod 5V | AUX1 L IN | - |
| 2 | AUX R IN | USB D- | USB D-/iPod TX | AUX1 R IN | - |
| 3 | AUX DET | USB D+ | USB D+/iPod FX | Option/Video | - |
| 4 | - | USB Ground | USB/iPod GND | AUX1 GND | D+ |
| 5 | - | - | |||
| 6 | illumination (+) | D- | |||
| 7 | AUX REF | - | |||
| 8 | AUX shield Ground | 5V | |||
| 9 | - | - | |||
| 10 | AUX V GND | ACC ID | |||
| 11 | Illumination (-) | - | |||
| 12 | Ground (AR) | - | |||
| 13 | - | ||||
| 14 | - | ||||
| 15 | GND | ||||
| 16 | GND | ||||
| 17 | - | ||||
| 18 | RX | ||||
| 19 | TX | ||||
| 20 | GND | ||||
| 21 | - | ||||
| 22 | - | ||||
| 23 | Video | ||||
| 24 | - | ||||
| 25 | - | ||||
| 26 | - | ||||
| 27 | AUX1 L IN | ||||
| 2S | AUX1 R IN | ||||
| 29 | Audio REF | ||||
| 30 | Signal wire GND | ||||
