Components and Components Location: Components

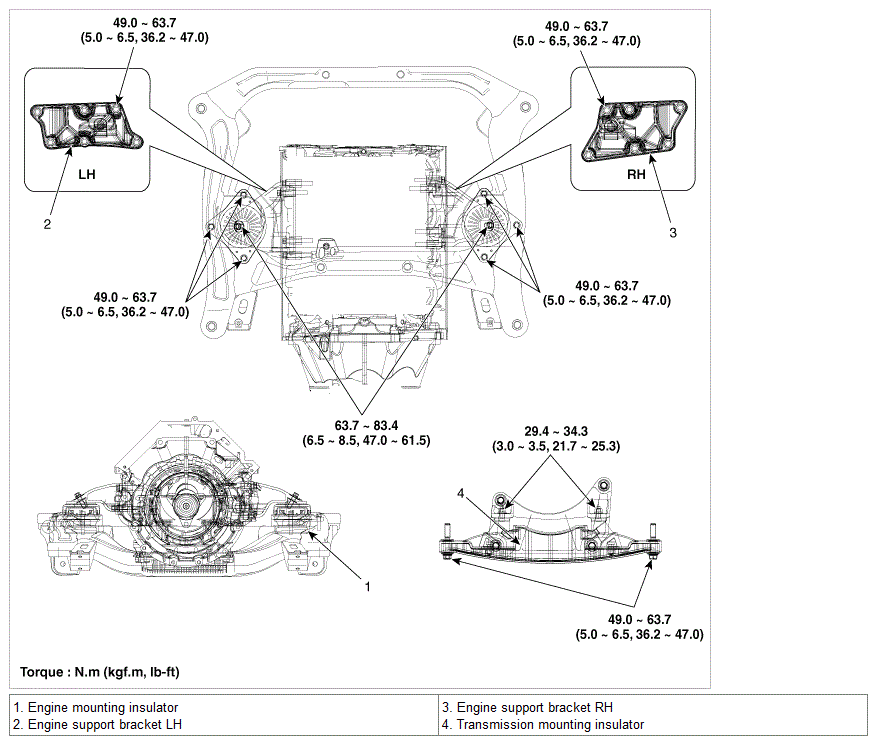

Fig 1: Engine And Transmission Assembly Mountings With Torque Specifications

G08822227

Courtesy of HYUNDAI MOTOR AMERICA
