Home >> Hyundai >> 2012 >> Genesis 5.0 >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System - 5.0L >> Oil Pump >> Components and Components Location >> Components

Components and Components Location: Components

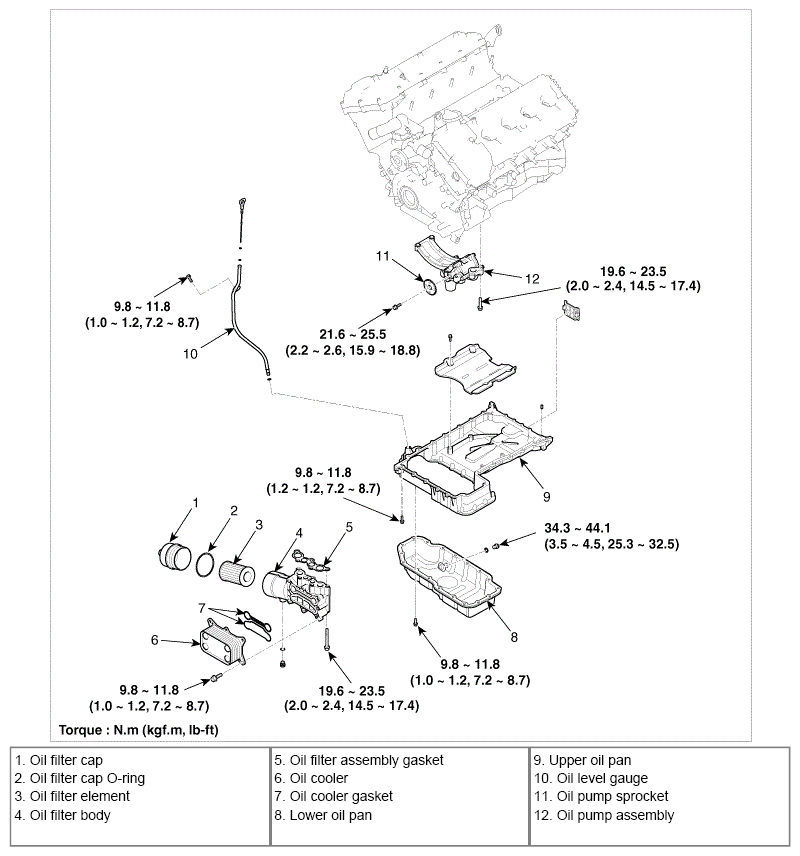

Fig 1: Oil Pump Replacement Components With Torque Specifications

G08822588

Courtesy of HYUNDAI MOTOR AMERICA
