Home >> Hyundai >> 2012 >> Genesis 5.0 >> Repair and Diagnosis >> Electrical >> Starter >> Starting System - 5.0L >> Starter >> Components and Components Location >> Components

Components and Components Location: Components

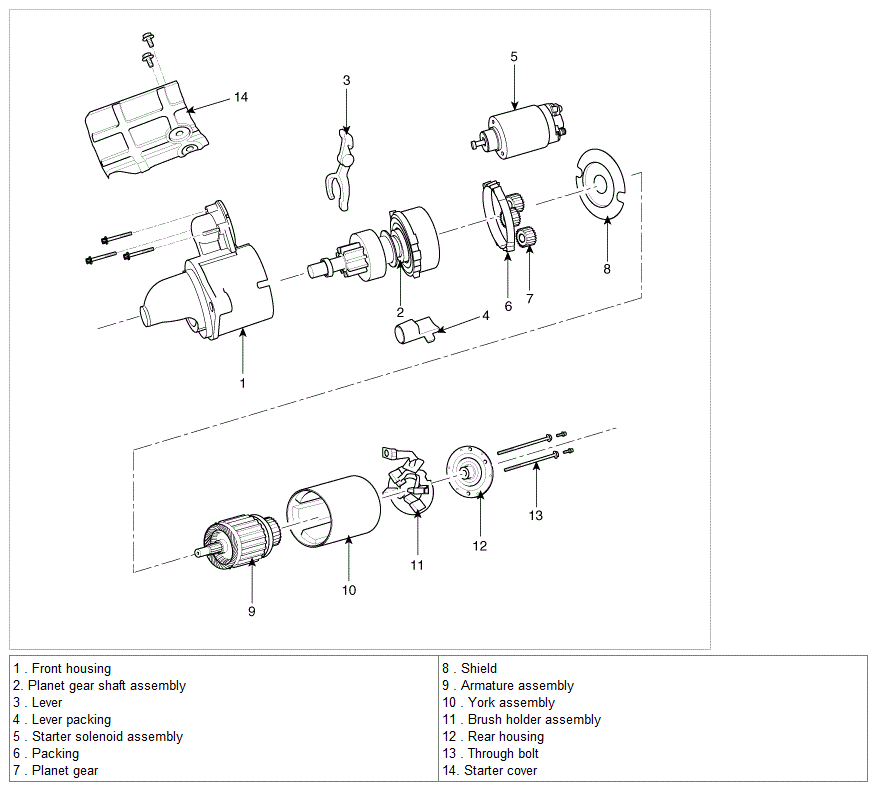

Fig 1: Identifying Starter Components

G08822711

Courtesy of HYUNDAI MOTOR AMERICA
