Home >> Hyundai >> 2012 >> Genesis 4.6 >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System - 4.6L >> Intake Manifold >> Components and Components Location >> Components

Components and Components Location: Components

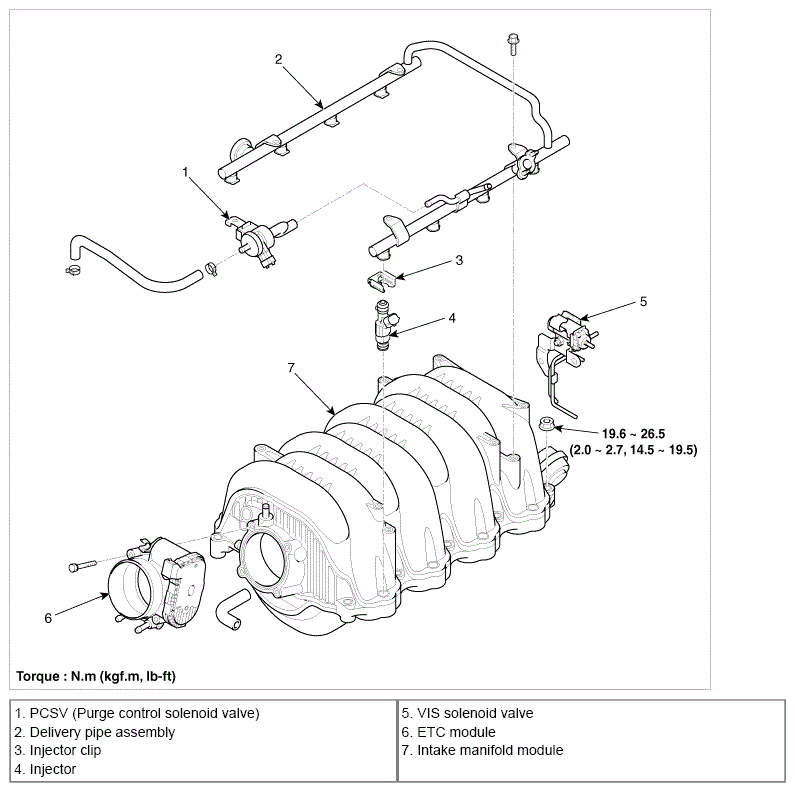

Fig 1: Intake Manifold Replacement Components With Torque Specifications

G08818942

Courtesy of HYUNDAI MOTOR AMERICA
