Home >> Hyundai >> 2012 >> Genesis 3.8 >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System - 3.8L >> Oil Pump >> Components and Components Location >> Components

Components and Components Location: Components

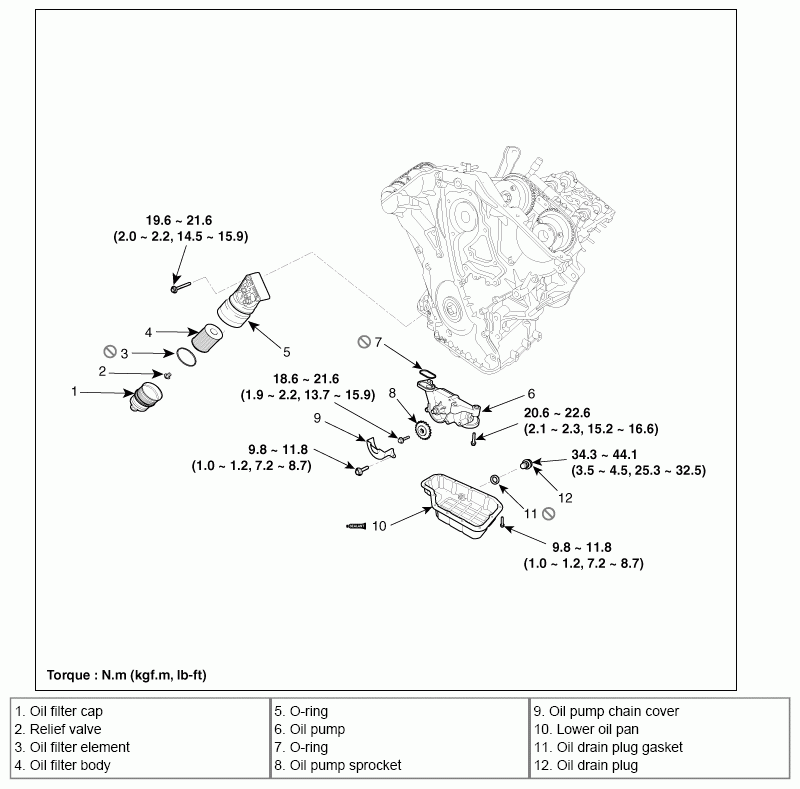

Fig 1: Oil Pump And Related Replacement Components With Torque Specifications

G08833866

Courtesy of HYUNDAI MOTOR AMERICA
